Consuetudo Aluminium Die Proiectionis Aluminium Pro LED Street Lumina

Home / Products / DUXERIT Street lux / Aluminium Die Proiectionis Aluminium Pro LED Street Lumina

  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
DUXERIT Street lux

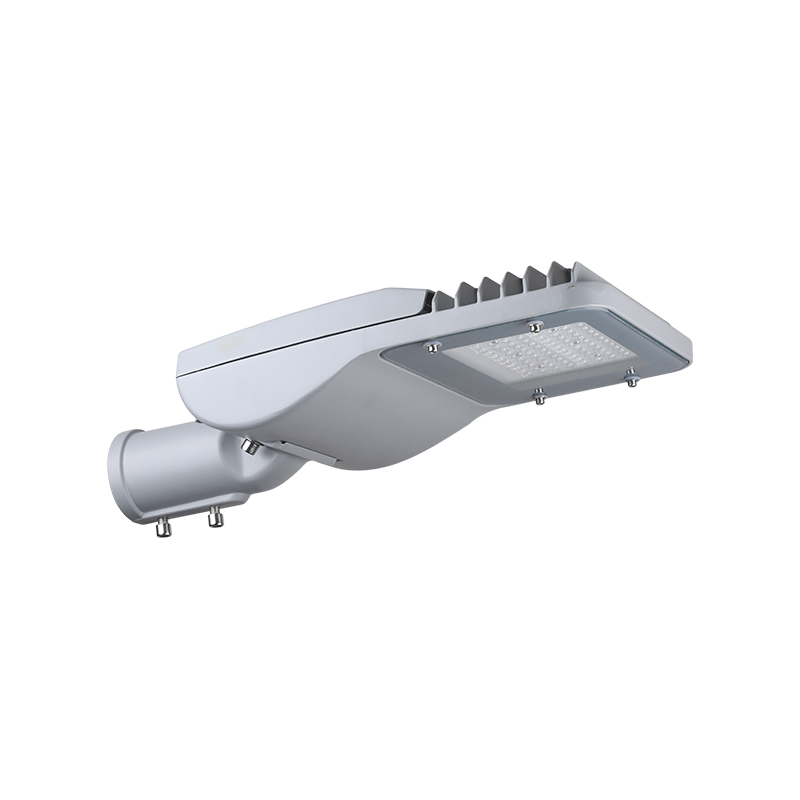

Aluminium Die Proiectionis Aluminium Pro LED Street Lumina

PREV   |   DEINDE

+ Contact us
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
  • Aluminium Die Proiectionis Aluminium Pro LED Street Lumina
APPLICANDIS AREA

Product Description

FEATURES
1. Available in sex magnitudinibus, plus sumptus efficens pro inceptis.
5050/3030 chip ducitur, 120-180lm/w Aluminium corpus altum pressum mori-cast cum durabili corrosione renitens pulveris polyester efficiens.
2. IP66, lk09 10 kv/20kv SPD ad libitum.
3. Angulus dosel adjustable 0±15°.
4. Unicum delapsum consilium permittit superiores habitationi et agitatoris tabulas cito disiungi sine auxilio ullius instrumentorum, quae inspectionem, reparationem et reponendam partium internarum faciliorem reddunt et ad efficaciam instrumentorum conservandam melius.
5. Salutis switch/Photocell/Shortans pileum/Smert sensorem ad libitum petitionem 5 annorum warantia.

MAIN APPLICATIONS


ROAD & HIGHWAY
pontes
URBANUS & RESIDENTIAL Areas
QUADRATUM & PEDES Areas


ARTI SPECIFICATIONIS

SPEC
MINI
MIDI
MAXI
Wattage 30-75w 80-150w 150-200w
Input voltage 100-277V/50-60Hz
Color temperatus 3000-6500K
Color reddens indicem CRI>70
operating temperatus -40℃~ 50℃
Praesent materia ADC12
Ingressus praesidium IP66
Impetum viribus IK08/IK09 ad libitum
Surge praesidium 10KV/20KV
Difusores Temperatum vitrum
Spigot diametri 50mm/60mm
Pondus 4.3kg 5.6kg 6.8kg


DESIGN IN SINGULA

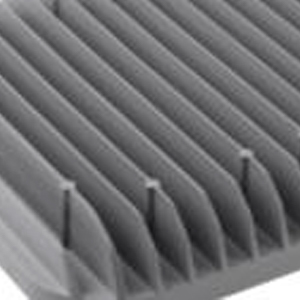

Corpus
Gravis officium corpus aluminii projectum cum corrosione repugnant polyester pulveris efficiens.

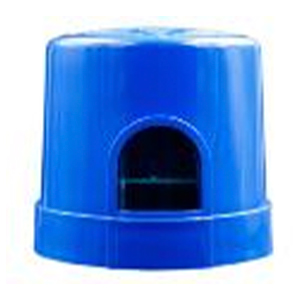

Photocontrol (libitum)
Libitum cum NEMA nervum & photocell/cap brevem.

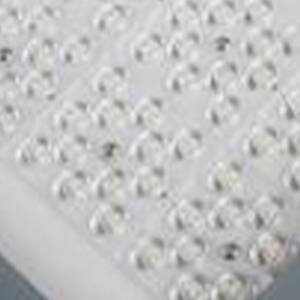

Ductus eu
Lumileda 3030 & 5050 astulas cum efficientia luminaire ducta usque ad 150lm/w, longam restem 50000 horarum.

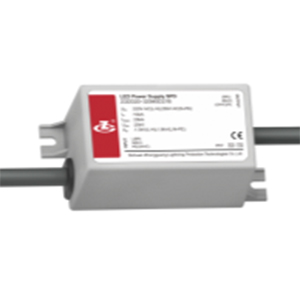

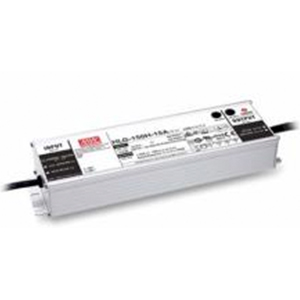

Virtus copia unit
Princeps perficientur ducitur exactoris
- 0-10v obscurare ad petitionem
- Coegi notam potest eligere in
MOSO, Meanwell, Philips, Osram.

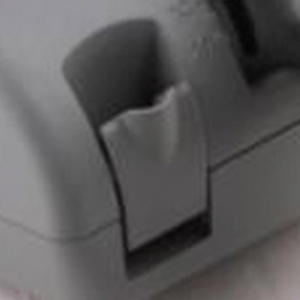

Fibulas aeneas
Toolless foramen cellulae calces, facile ad victum.

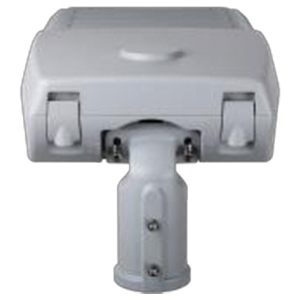

Spigot
Latius angulus aptabilis ab 0°-±15° ad latus ingressu et post verticem ascendens.

Power disconnector
Automatarie luminaire off cum cellula calces aperta et post arctam vicissim salutem operariis cum durante sustentatione.

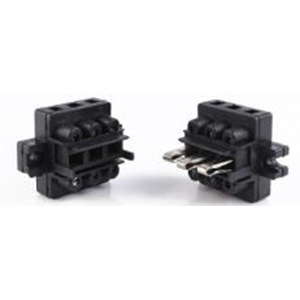

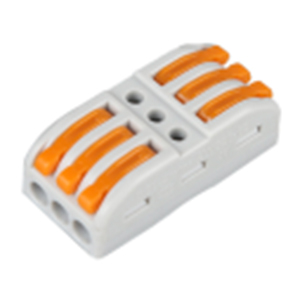

Connector
Velox obturaculum-in iungo, minus instrumentum, nisi tempus.
SPD
10kv (20kv ad libitum) surget fabrica tutelae, certius praesidium est ad unitatem ducendam copia virtutis.

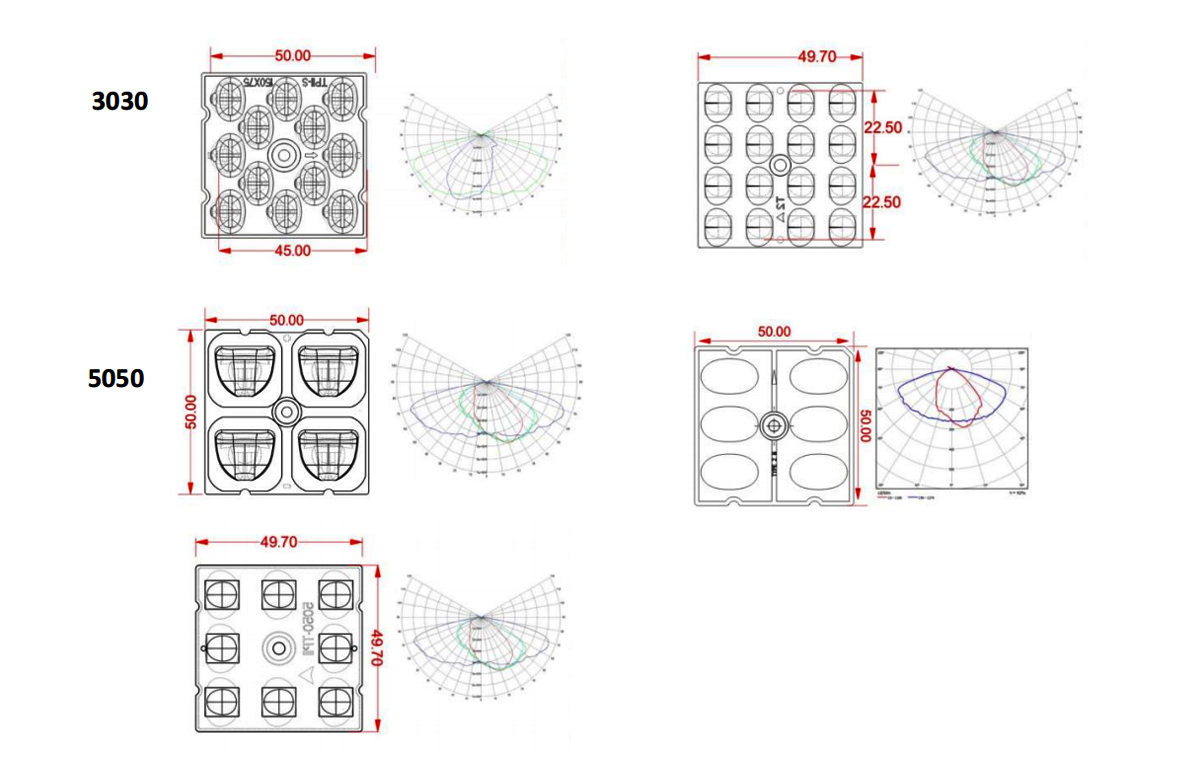

OPTICS AVAILABLE

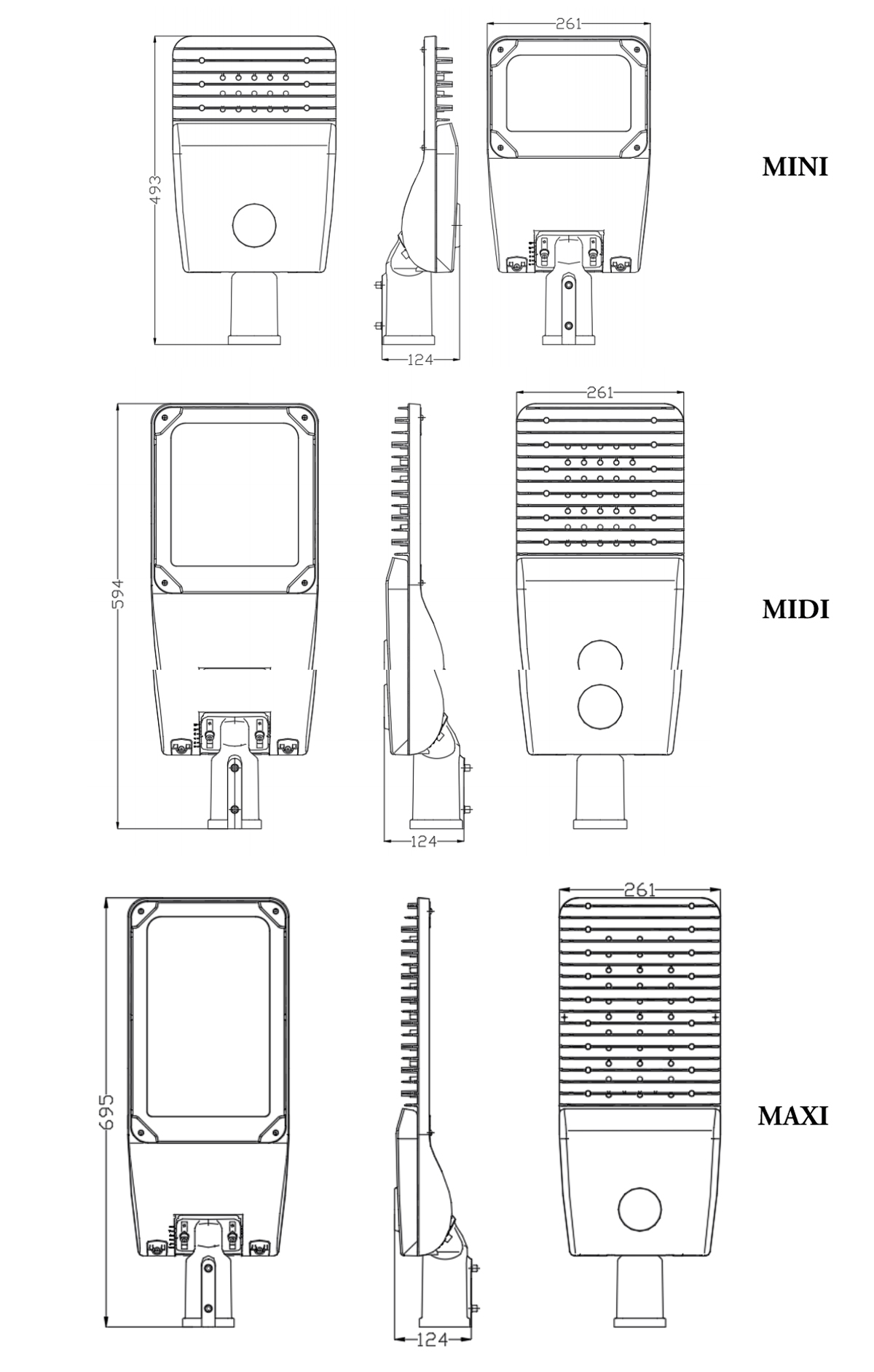

DIMENSIONES (mm)


Order Information

Order code LED type LEDQty Optica
Qty 		Ratum Wattage Luminaire
efficientiam up to 		Lucis fluxum CCT CRI
ATP101 3030 96 6 60w 120lm/w*** 9600lm 3000K-6500K >70
ATP201 3030 192 12 120w 120lm/w*** 14400lm 3000K-6500K >70
ATP301 3030 288 18 180w 120lm/w*** 21600lm 3000K-6500K >70


Animadverte:
- Wattage in project petitionem nativus esse potest.
- Latin habitationi pictura color pallidus griseus, alius color petentibus depingi potest.

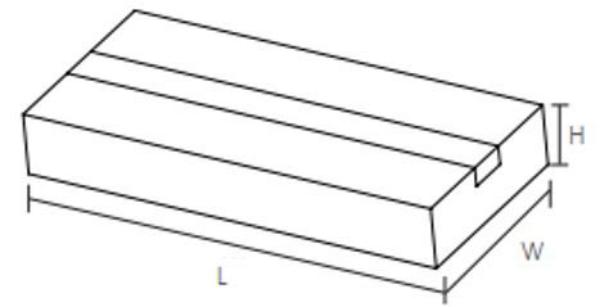

DATA LOGISTICS

EXEMPLUM Stipare unitas
(Pcs/carton) 		Lobortis magnitudo(mm)
(Longitudo * Latitudo altitudo) 		Rete pondus Crassa pondus Volumen
ATLANTICPRO MINI 1 510* 280* 180mm 4.3kg 4.8kg 25.7dm³
ATLANTICPRO MIDI 1 610* 280* 180mm 5.6kg 6.2kg 30.7dm³
ATLANTICPRO MAXI 1 710* 280* 180mm 6.8kg 7.5kg 35.7dm³


INSTALLATION

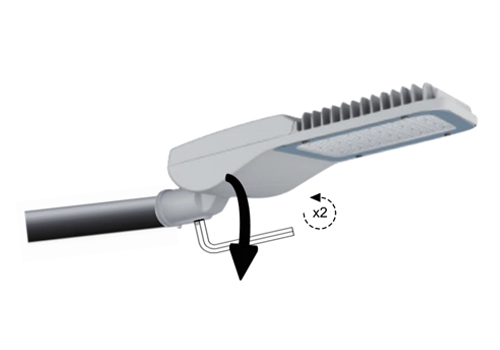

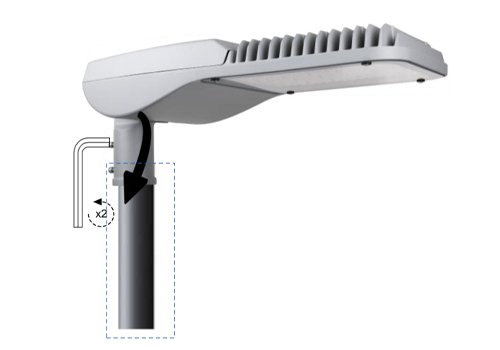

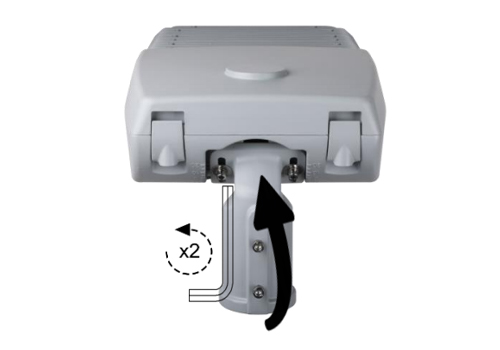

Obstringere luminaire ad polum ab allen detorquent.
Cochleas ab allen extorqueas solve et dosel gyrari ad latus introitus positio aptare.

Instrumenta una tantum manus requiritur ad luminaire inaugurandi.

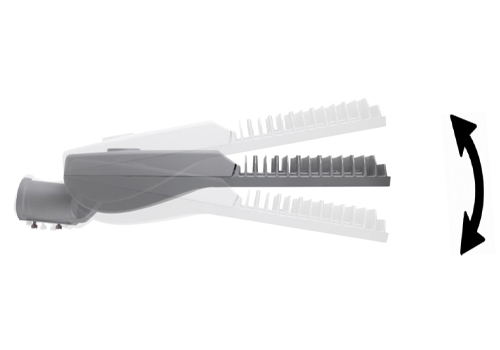

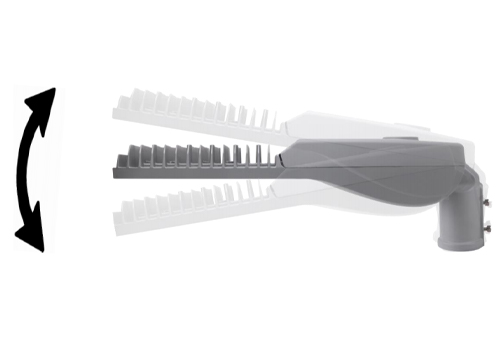

-15° ad 15°.

-15° ad 15° angulus Spigotus componi potest -15°, 10°, 0°, 5°, 10°, 15°.

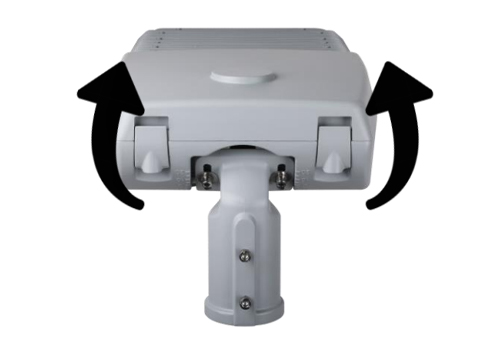

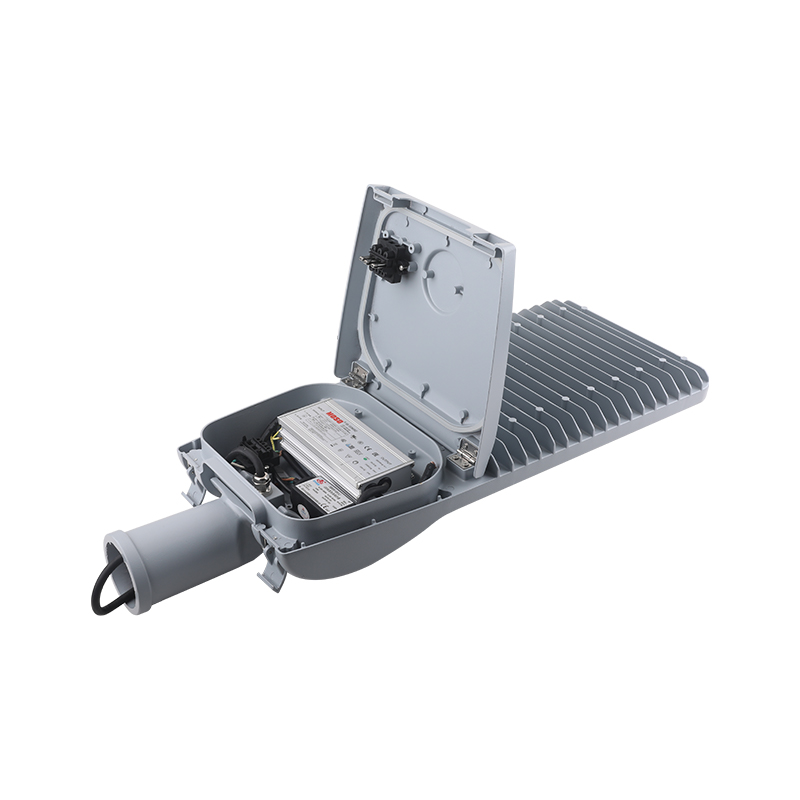

Preme duas fibulas aeneas ad calces aperta cellula.

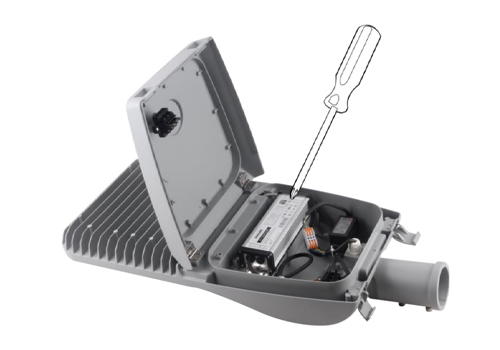

Pone cella tegumentum calces ad positionem clausam, utens crucis vertitorium cochleas laxas et in partes electronicas defecit reponere, deinde machinis machinis claude.

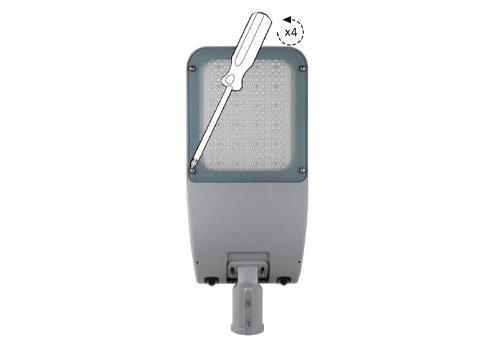

Cochleas solve et vitrum remove, deinde cochleas in pcb clausas solve, tolle defecit pcb et repone cum uno novo. Coniungere et obstringere utramque partem retro gradatim.
