APPLICANDIS AREA

Product Description

FEATURES
1.Tool-liberum fibula consilium institutionem ac sustentationem facilem facit.
2. Housing facta ex ADC12 materia aluminii mori-jacentis et cum corrosione resistentia polyester pulveris efficiens confecta.
3.Equipede gradu spiritui tubuloso efficit ut luminaire semper in positione rectae institutionis.
4.Streamlined luminaire corporis consilio et humilis ventus resistentia.
5.Fixation dosel pro 60mm parte introitus ascendentis.
6.IP66 IMPERVIUS fabrica velit.
7.Photocell/Shorting pileum/Smart sensorem ad libitum postulante.
8. Idonea ad usum applicationum accendit ut urbem, viam, viam, residentialem viam, etc.

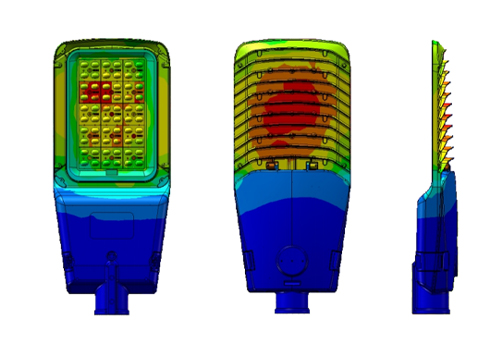

MAGISTERIUM scelerisque
Optimize systema refrigerandi luminaire et structuram technologiae FEA provectae ad solutiones maxime efficaces pervenire.
Temperatura bene administrata oritur inter partes internas et externas fontem lucidiorem reddit lumen sustentationis altioris rate.


Scelerisque Conductivity

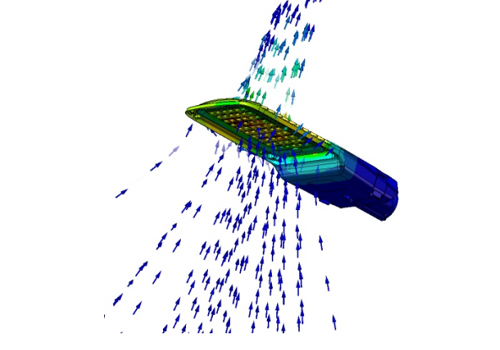

Scelerisque Air Convection

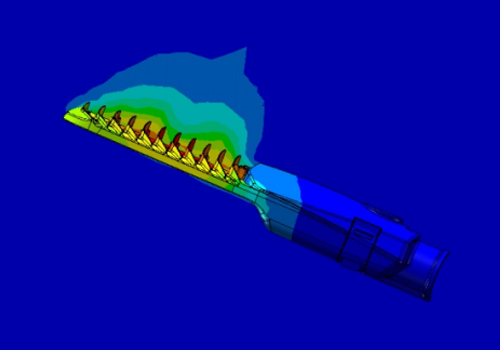

Effectus scelerisque Environment

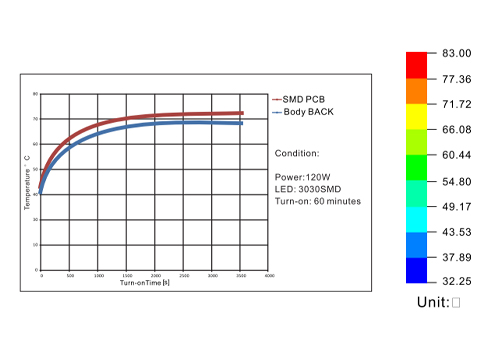

Temperature Surge Curve


PARAMETERS principale

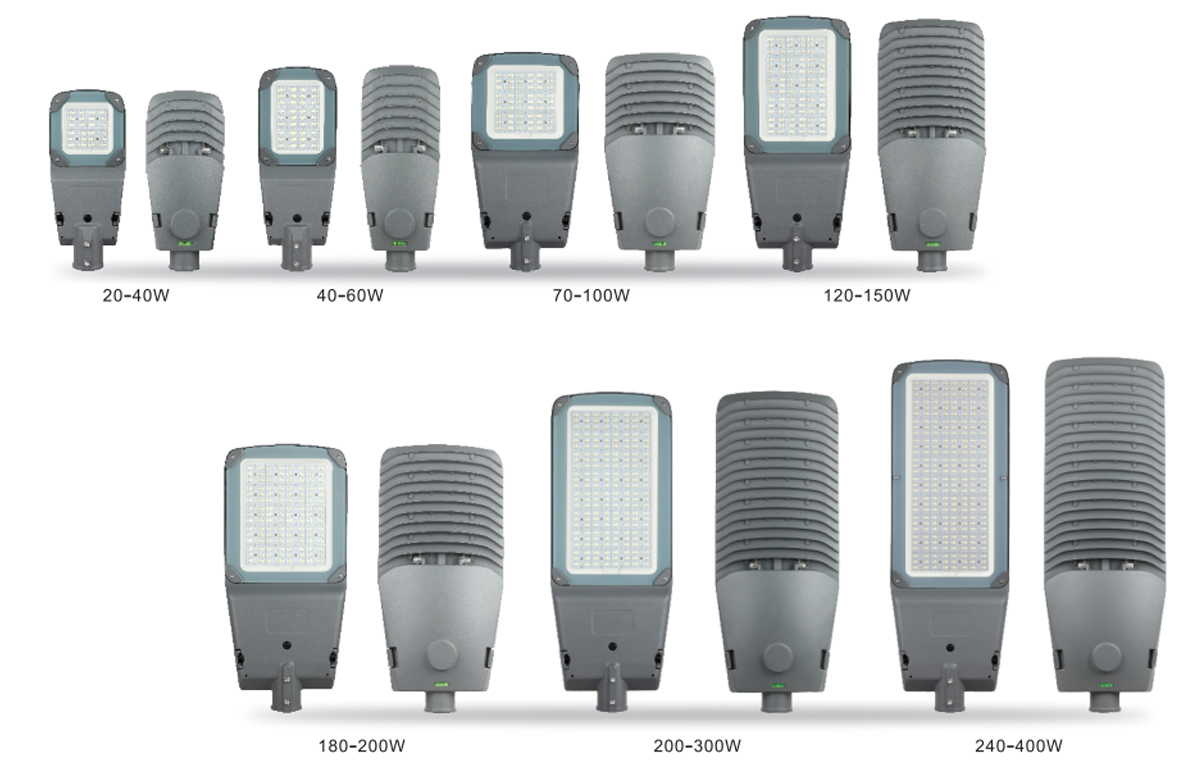

Model SAVANNALITE-M2*2 SAVANNALITE-M2*3 SAVANNALITE-M3*3 SAVANNALITE-M3*5 SAVANNALITE-M4*5 SAVANNALITE-M4*8 SAVANNALITE-M4* 10
Potestas 20-40W 40-60W 70W-100W 120-150W 180-200W 200-300W 240-400W
Product Size(MM) 445* 190*102 495* 190* 102 536* 270* 102 637*270*102 665*310*112 816*310*112 918*310*112
Efficacia Luminaire 120-170LM/W
Input intentione 100-277V/50-60HZ
Potestas Factor >0.95
CCT 2700-6500K
CRI >70
Operans Tempeaatufe -40℃~ 50℃
angulus angulus T1/T2/T3/70X140°
habitationi Material ADC12 mori jactans aluminium
Lens Material Optical PC lens
IP IP66
IK IK09
Surge Praesidium 10KV/20KV(Libitum)
Lifespan (L) horis
Difusores 5MM vitrum temperatum
Pole Diameter 60MM
Institutionem Horizontalis institutionem
Institutionem Depth >110MM
Warranty V annis

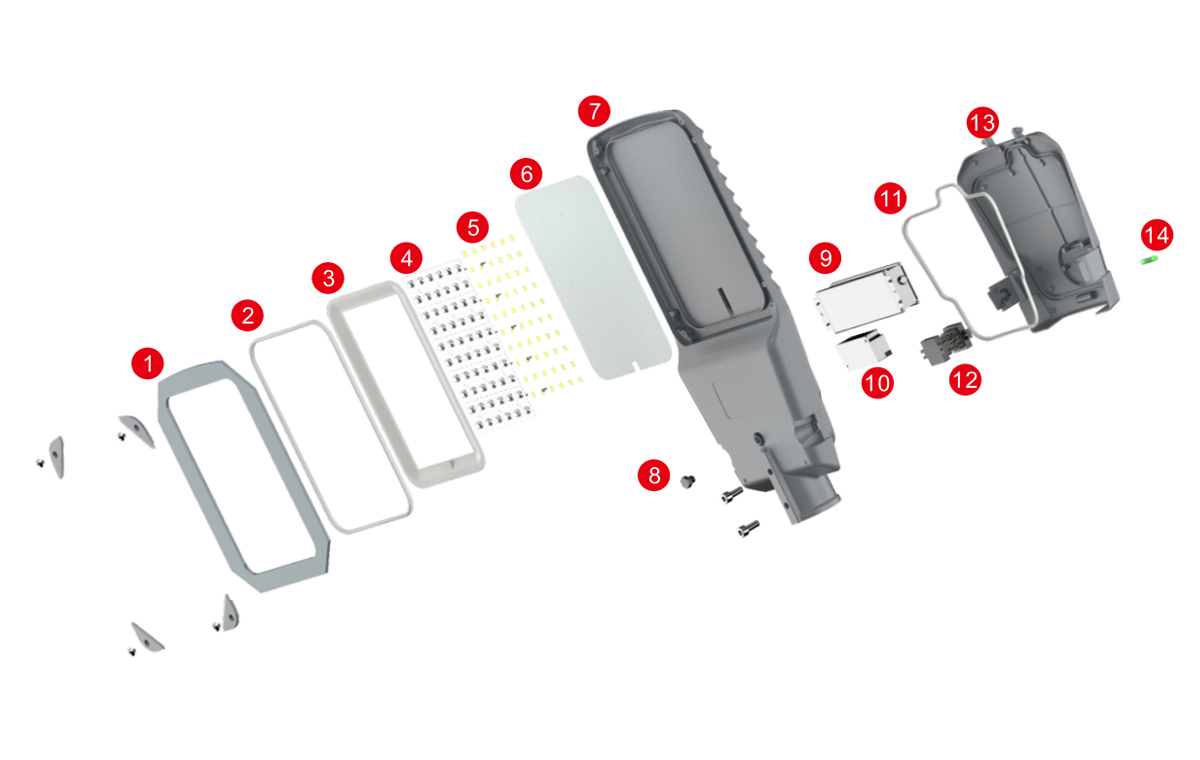

EXPODED VIEW

1. 5MM vitreum temperatum Aluminium efficientiam altam PCB Silicone anulus 11. IMPERVIUS
2. silicone anulum IMPERVIUS 7. ADC12 aluminium corpus mori- 12. Potestas disconnector
3. Nano-pc pondero 8. spirans valvae 13. ADC12 Aluminium potentia copia operimentum moriuntur
4. TIR lens optical PC 9. DUXERIT potentia copia 14. Tubulare spiritus campestris
5. High lemen DUXERIT chip 10. Surge protector (10KV/20KV ad libitum)

Valvae respirationis efficaciter condensationem et contaminationem minuere possunt, celeri pressione conpensationem et remissionem praebet.

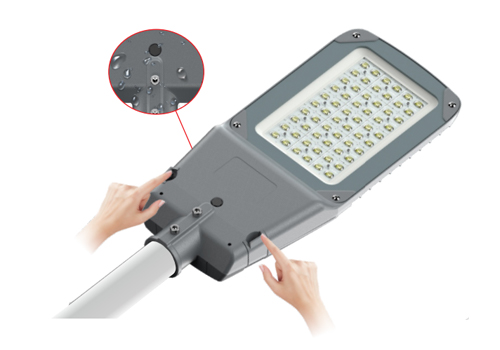

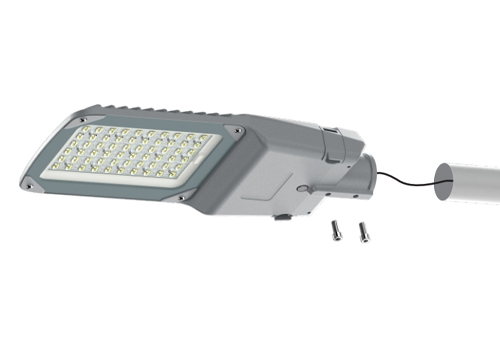

INSTRUMENTUM FREE fibula design

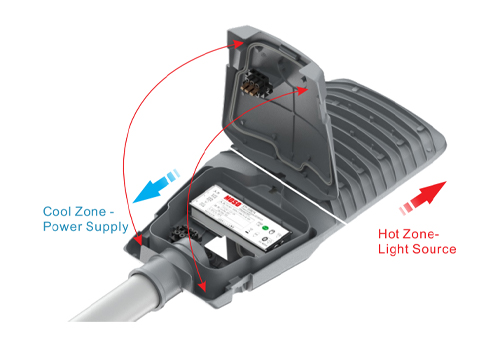

· Scelerisque & electrici cellula designatio separata.
· Facultate disconnectoris instructus, automatice vim suam aperiet cum aperta tegunt.
·Photocell/Shortans pileum/Smert sensorem ad libitum postulans.


APPLICATIONS
Idonea viae velit ad missionem illustrandam sicut via urbis, via, via residentialis, etc.

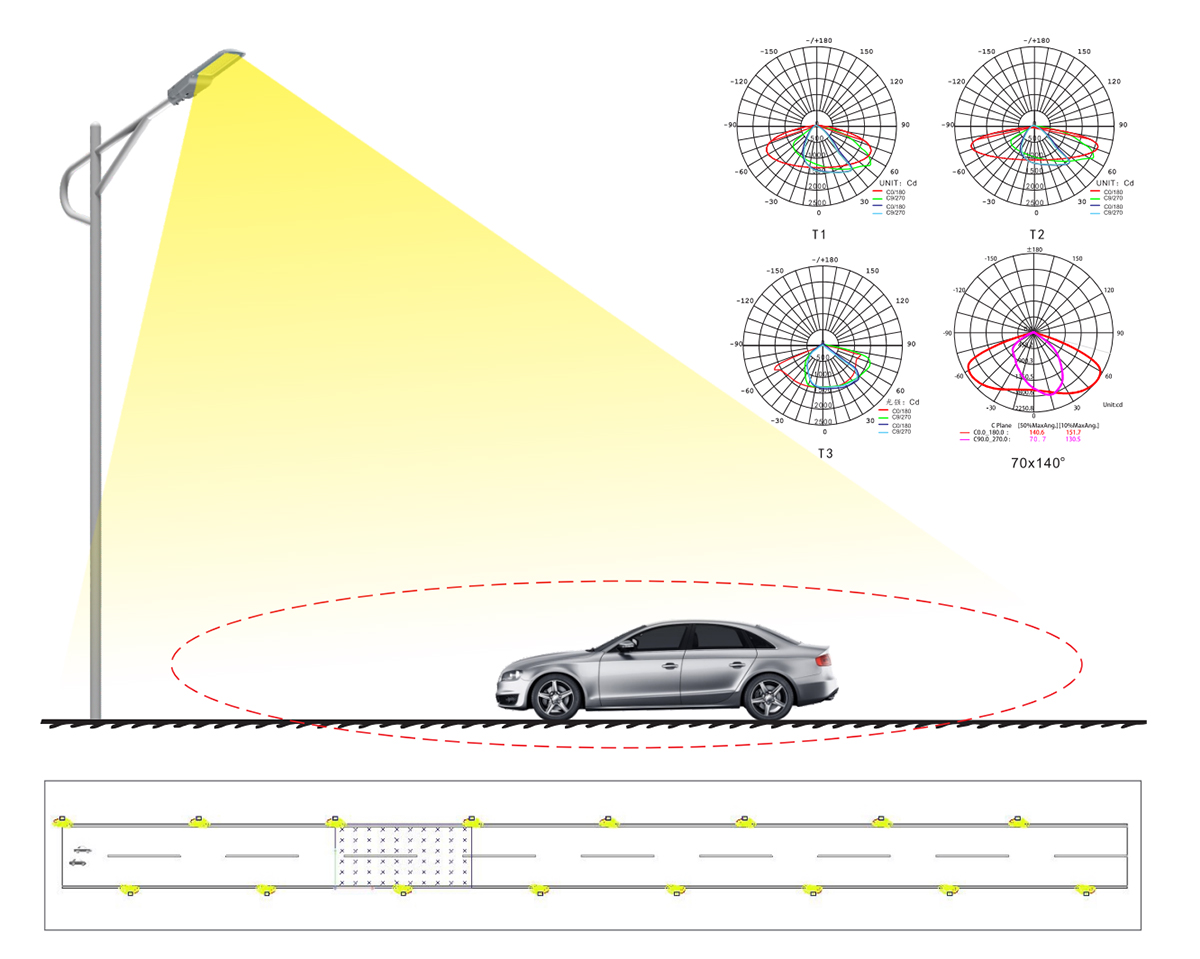

OPTICS
Tech firmamentum: Dic spatium longitudinis, latitudinis, altitudinis et applicationis usus.
Turma ingeniarium habemus ad simulationes DlALUX faciendas et ad quantitates luminaire pro tuo consilio computandum.
IES lima in promptu sunt postulante.

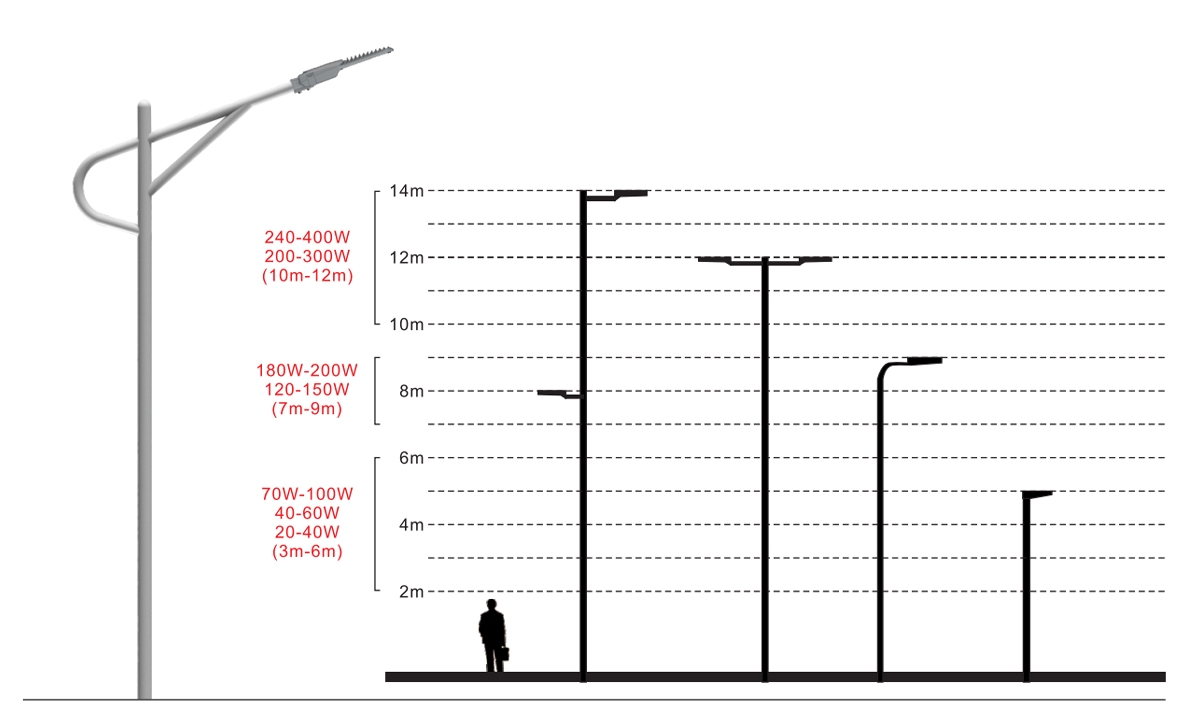

INSTALLATION


Horizontalis institutionem
Perfecti-horizontalis institutionem

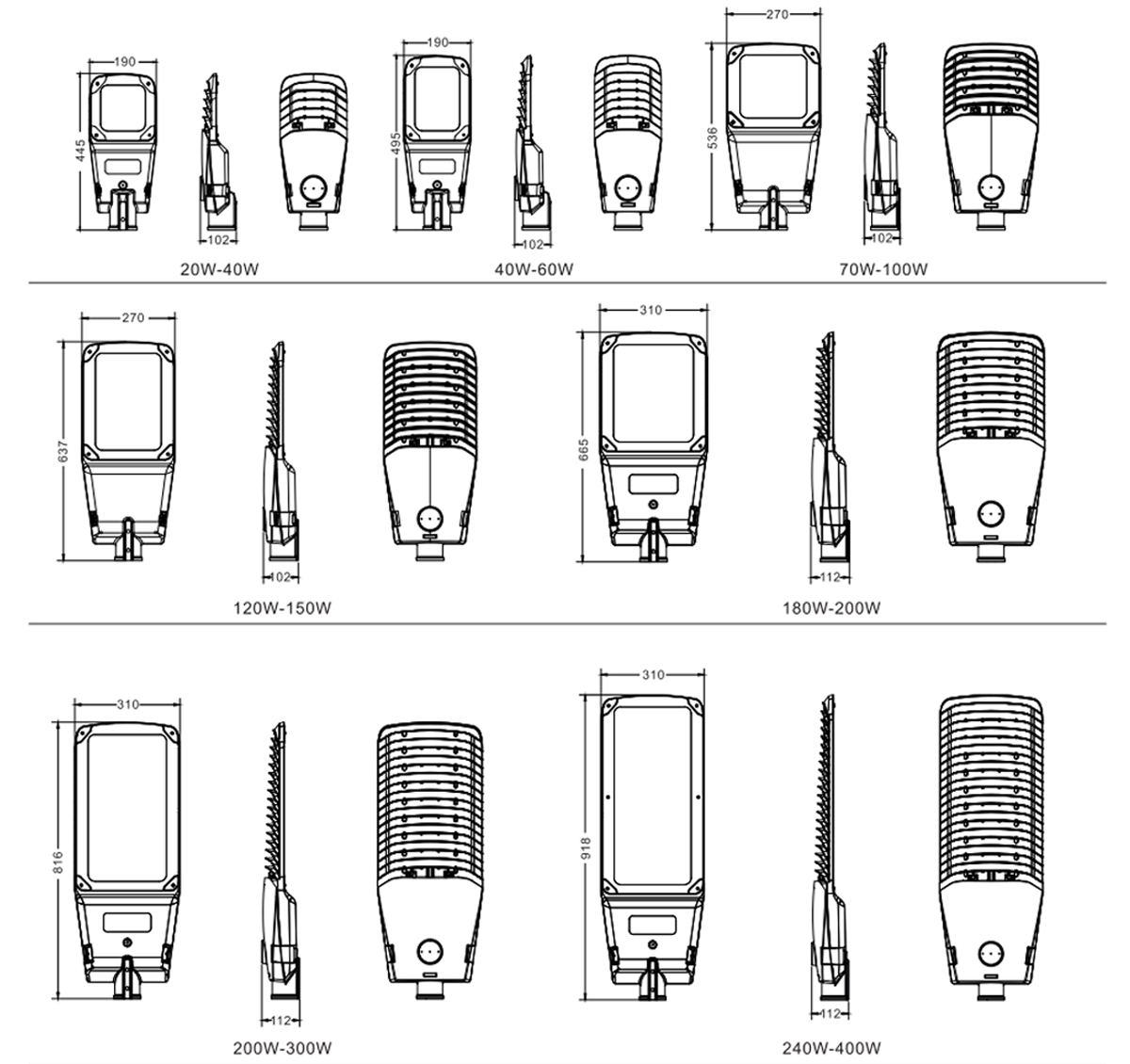

PRORSUS DIMENSIONE DUCTUS
Unitas: MM

PACKAGING PARAMETERS

Model SAVANNALITE-M2*2 SAVANNALITE-M2*3 SAVANNALITE-M3*3 SAVANNALITE-M3*5 SAVANNALITE-M4*5 SAVANNALITE-M4*8 SAVANNALITE
-M4*10
Potestas 20-40W 40-60W 70W-100W 120-150W 180-200W 200-300W 240-400W
QTY 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS
Lobortis amplitudo (MM) 460*200*140 510*200* 140 550* 280* 140 650* 280* 140 680* 315* 140 830*315*140 930*315*140
N.W(KG) 2.7 3 4.3 5.1 6 7.4 8.4
G.W(KG) 3 3.3 4.7 5.6 6.6 8.1 9.2
20GP 2174PCS 1961PCS 1299PCS 1099PCS 934PCS 765PCS 683PCS
40GP 4503PCS 4062PCS 2690PCS 2276PCS 1934PCS 1585PCS 1414PCS
40HQ 5280PCS 4762PCS 3154PCS 2669PCS 2268PCS 1858PCS 1658PCS

INSTALLATION SUGGESTIONS


IUDICIUM
1. Institutionem electricians professionalibus fieri oportet.
2. Ne opus deprimant. Sit periculosum.
3. Ad luminaire directe Nec conspiciunt, cum virtus Vertitur ad vitanda Oculorum laedendi.
4. Funem waterproofed esse debet, cum electrica ad usum velit connexum.
