DUXERIT Street lux

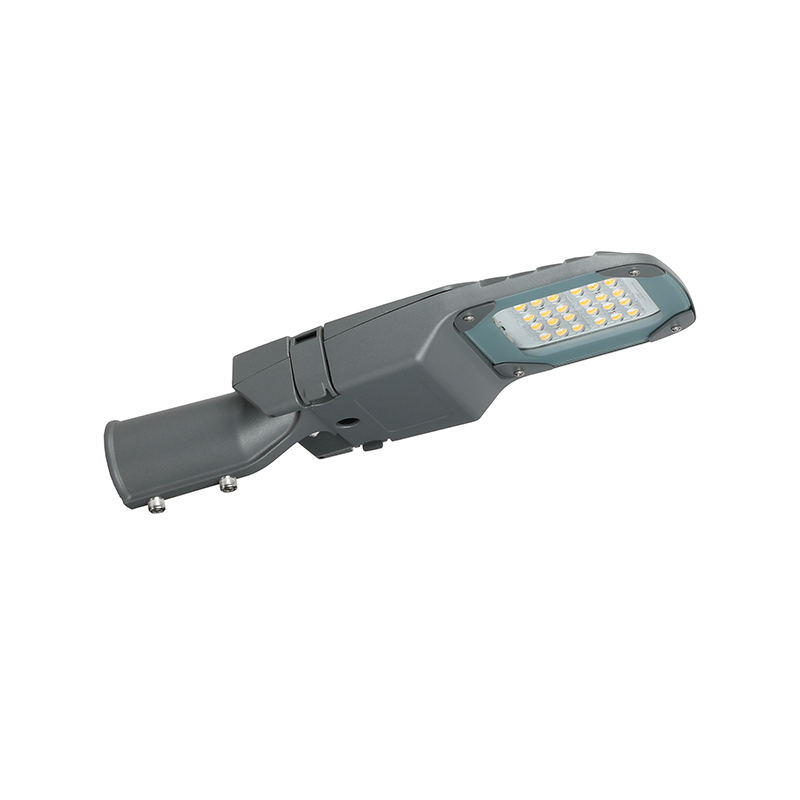

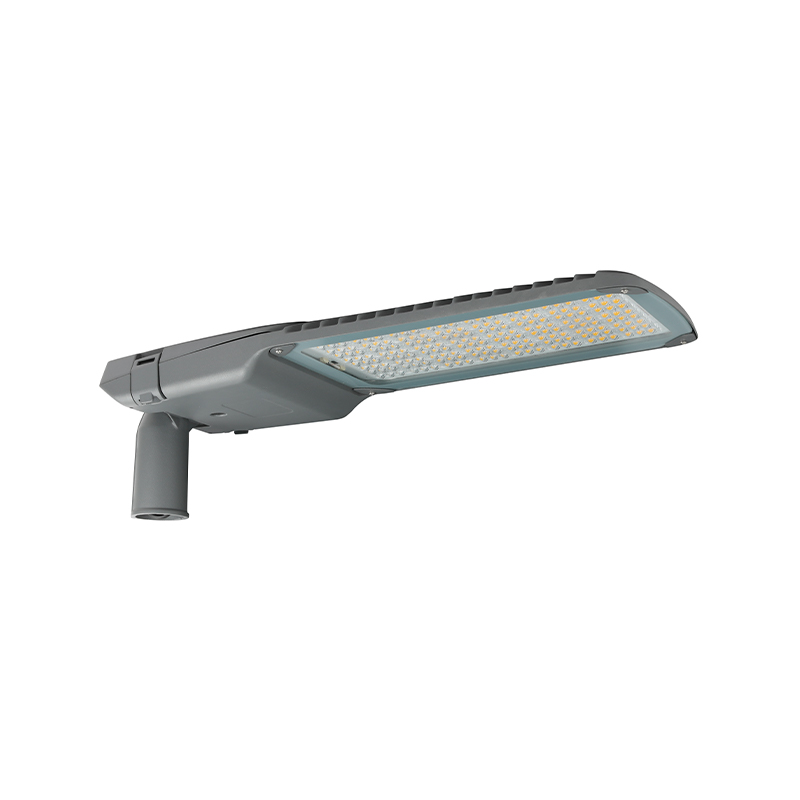

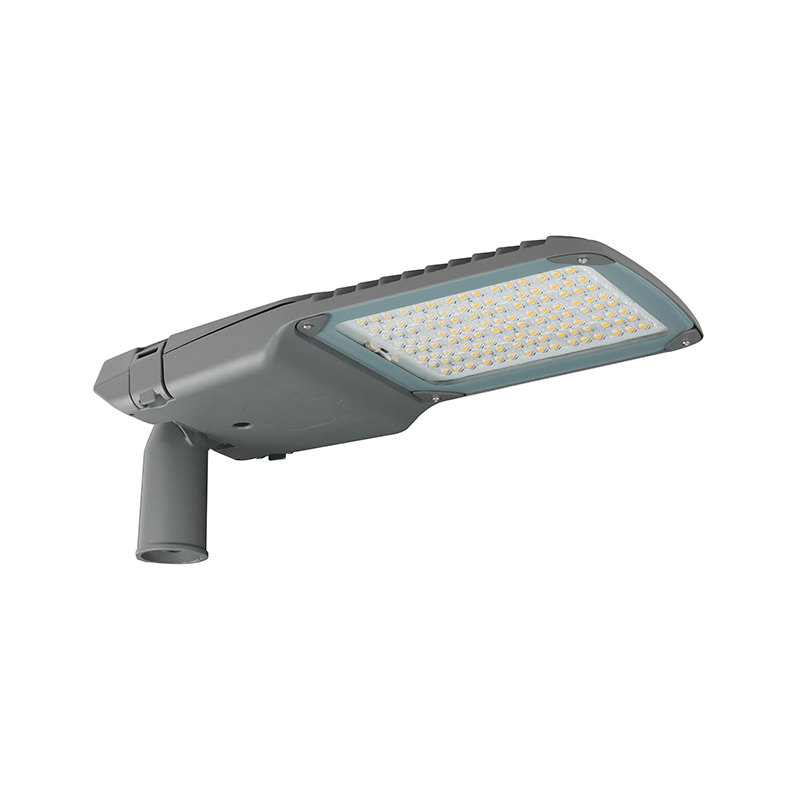

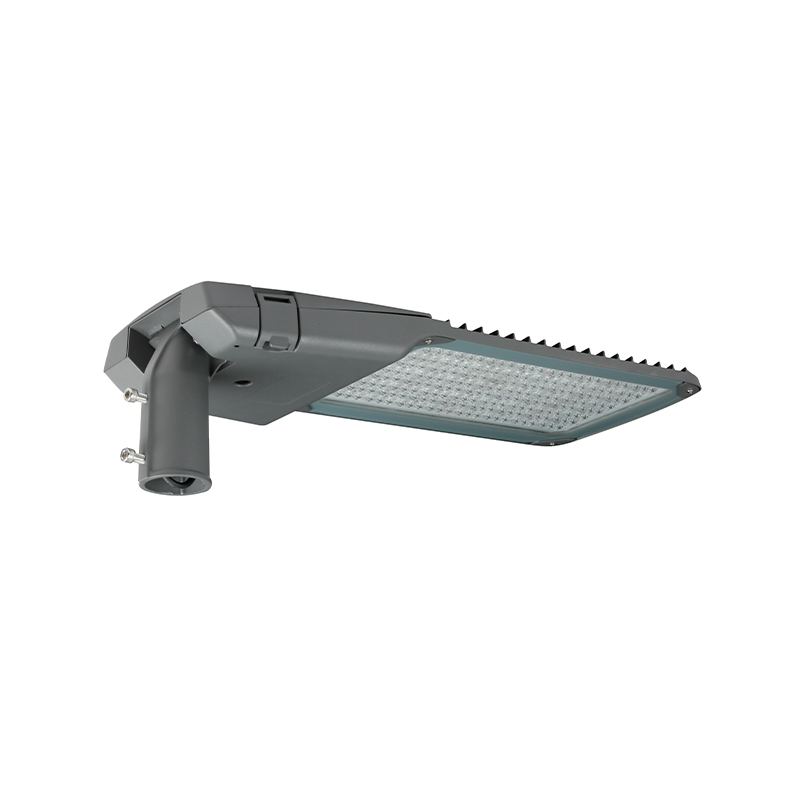

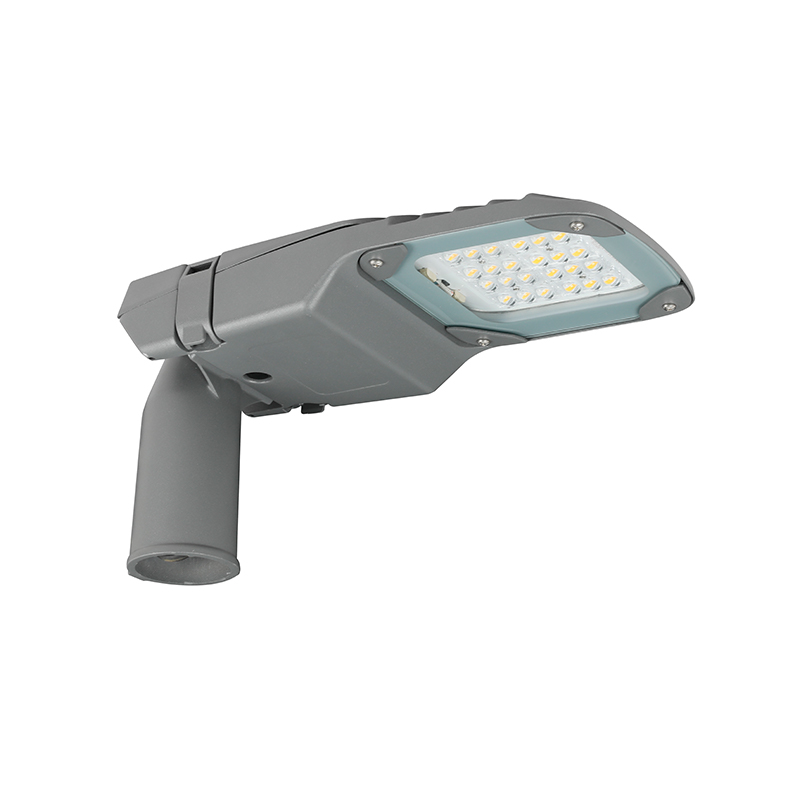

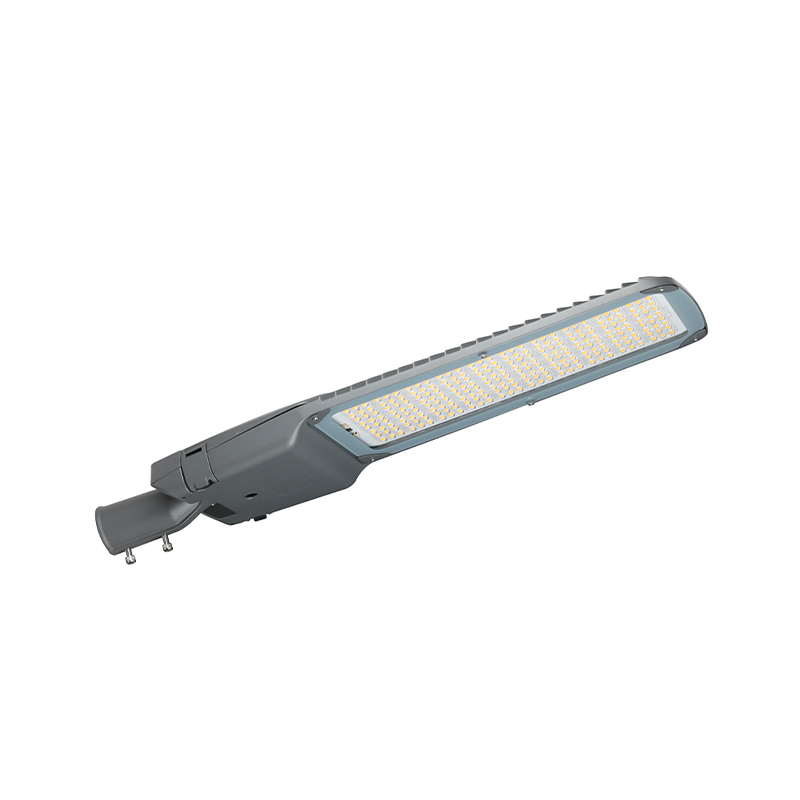

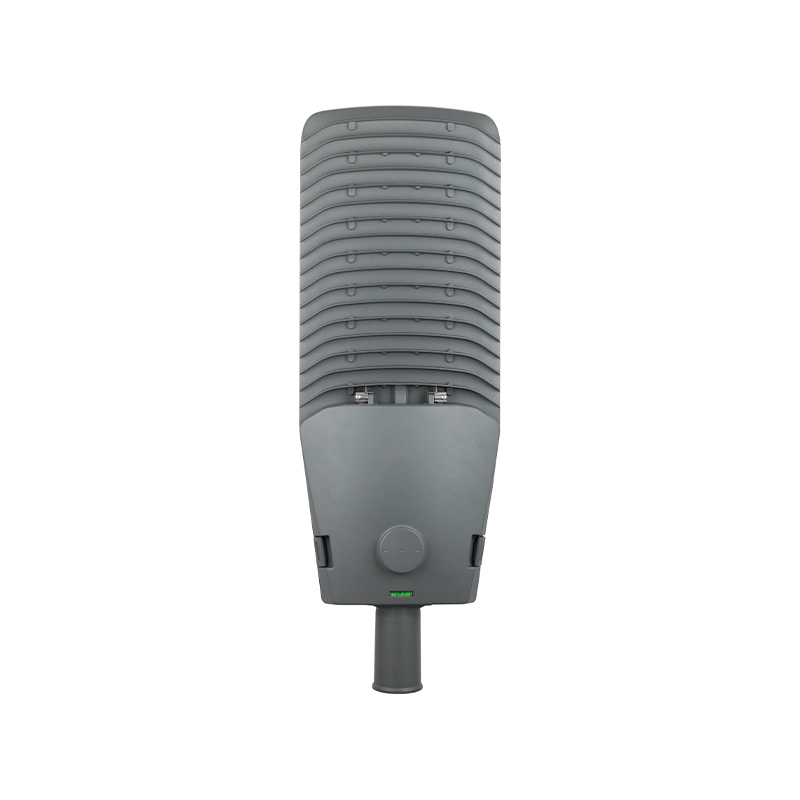

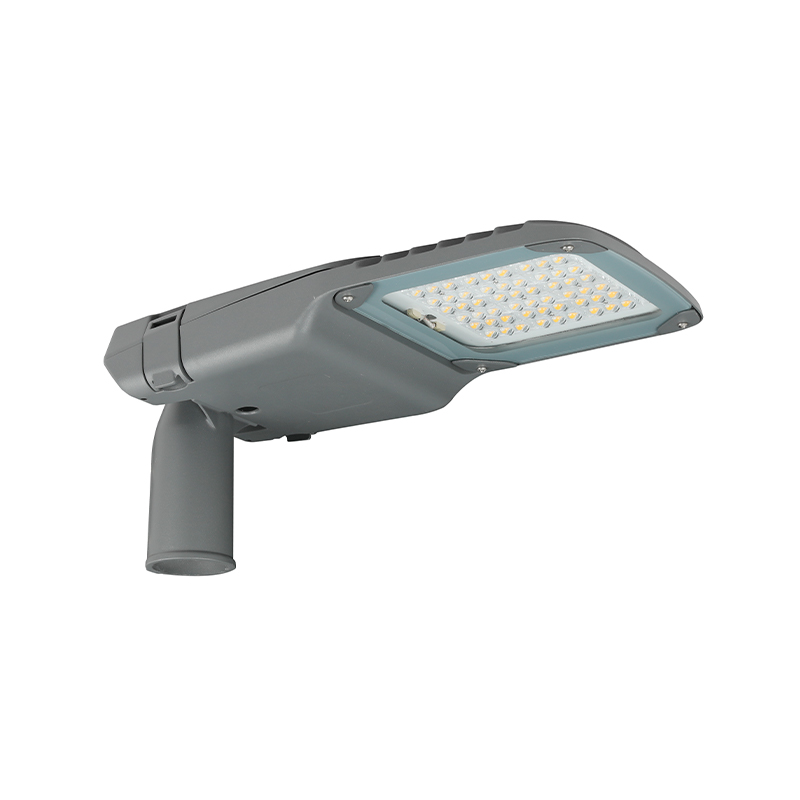

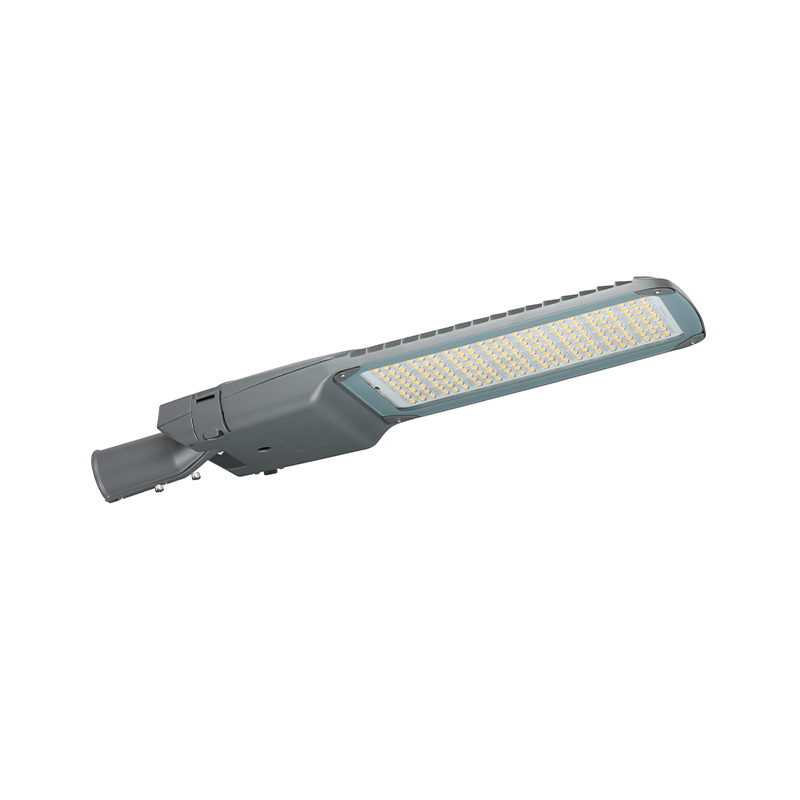

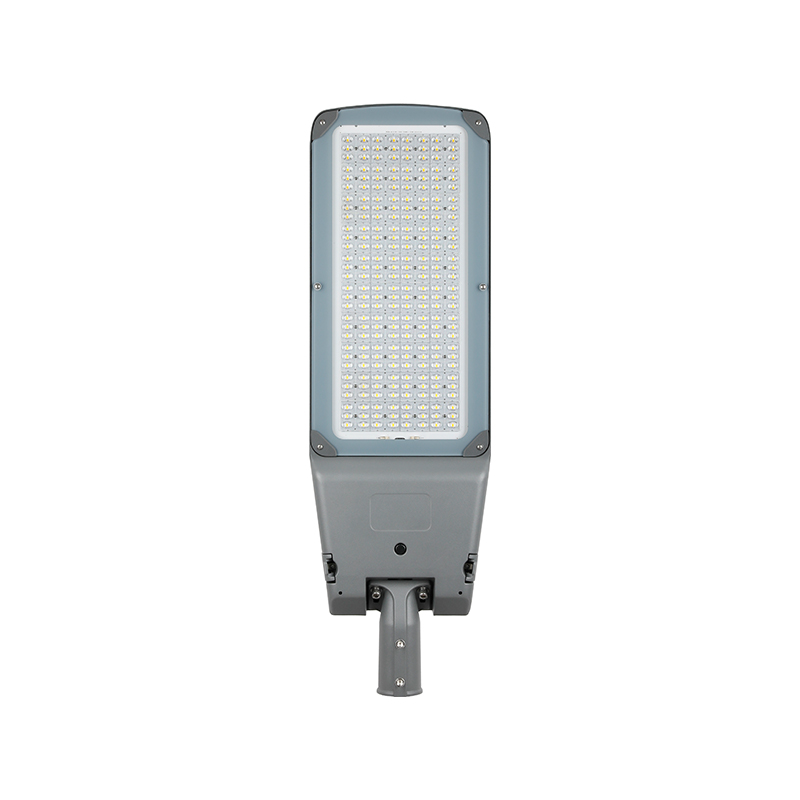

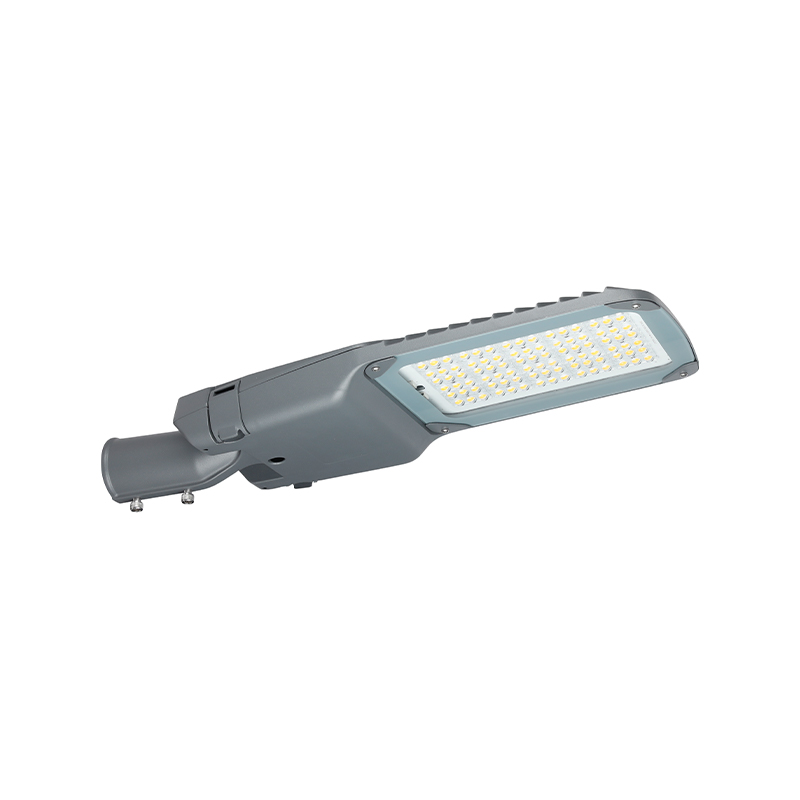

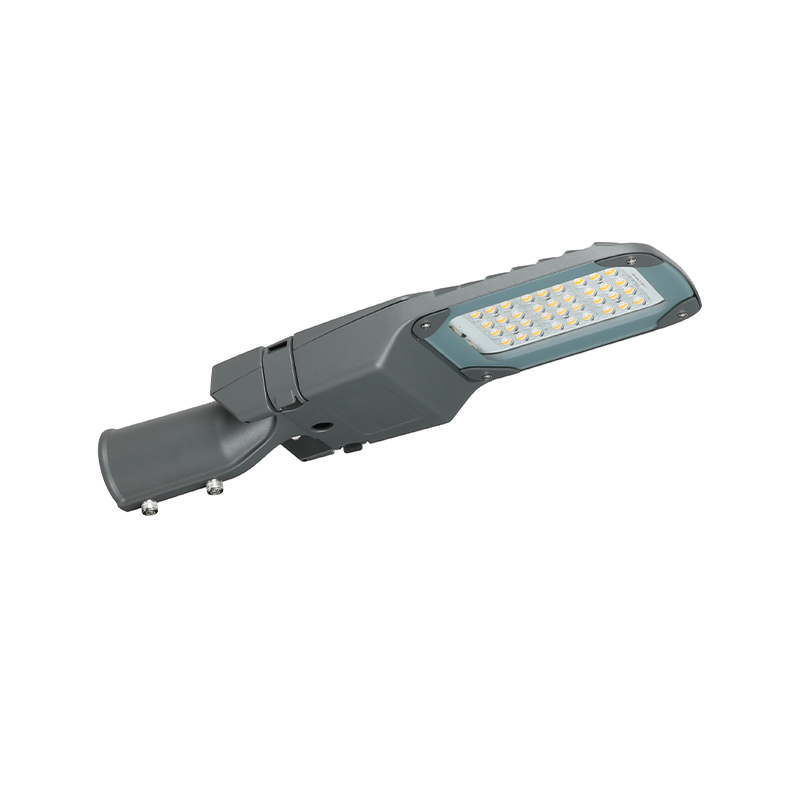

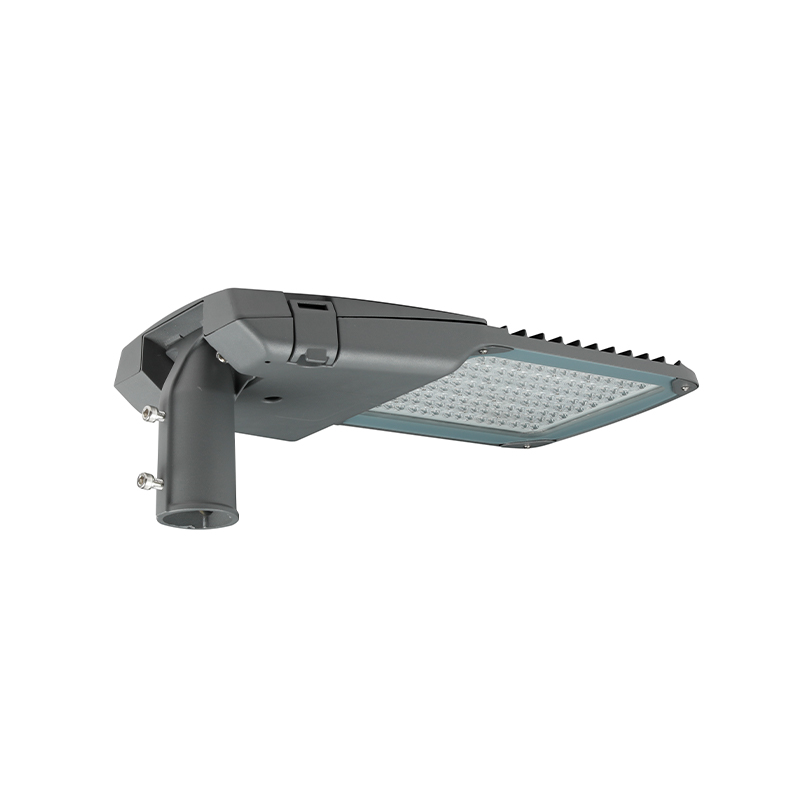

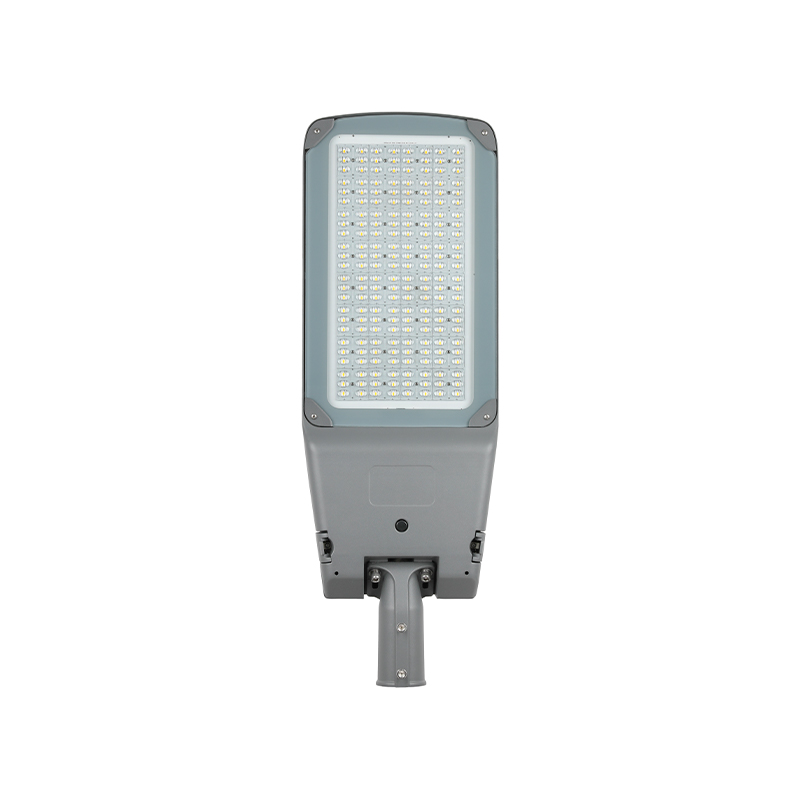

New Design IK09 IP66 IMPERVIUS SAVANNA Series LED Street Lumina
APPLICANDIS AREA
Product Description
FEATURES
1. Instrumentum liberorum fibula designans institutionem ac sustentationem facilem facit.
2. Habitatio facta ex ADC12 materia aluminii mori-jacentis et cum corrosione resistentia polyester pulveris efficiens confecta.

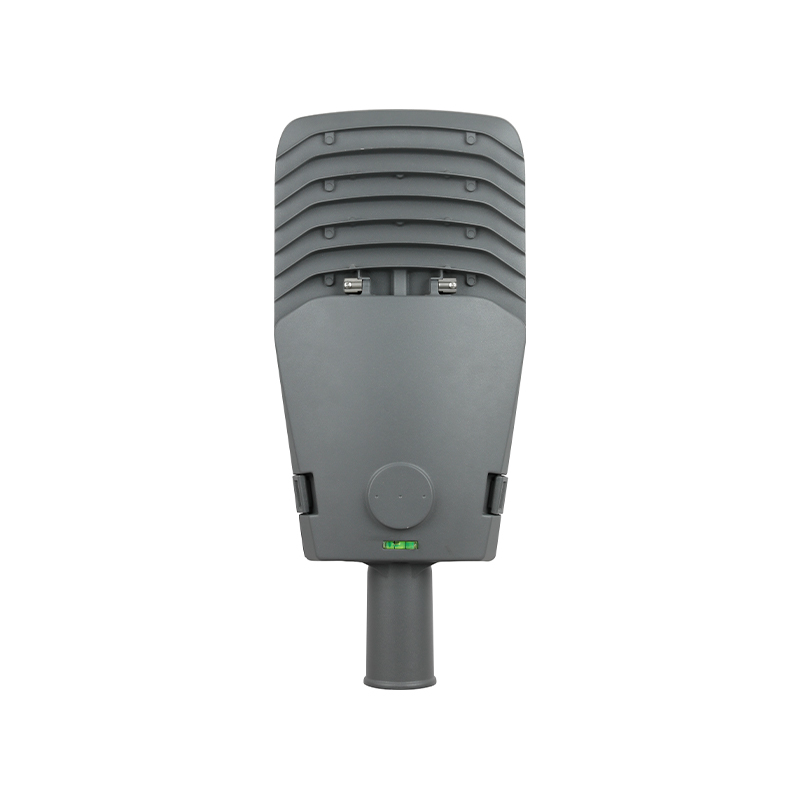

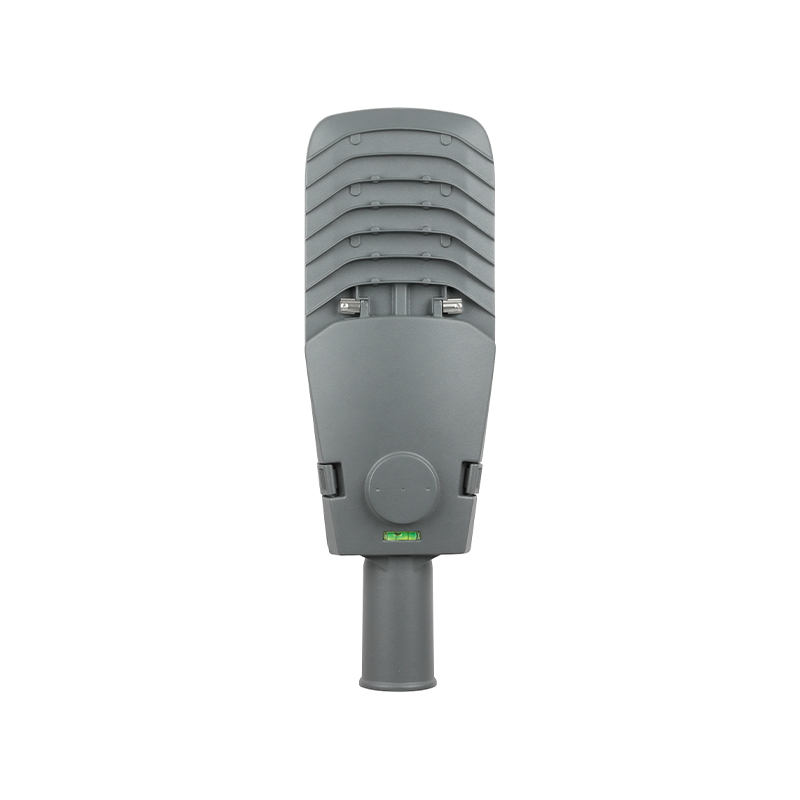

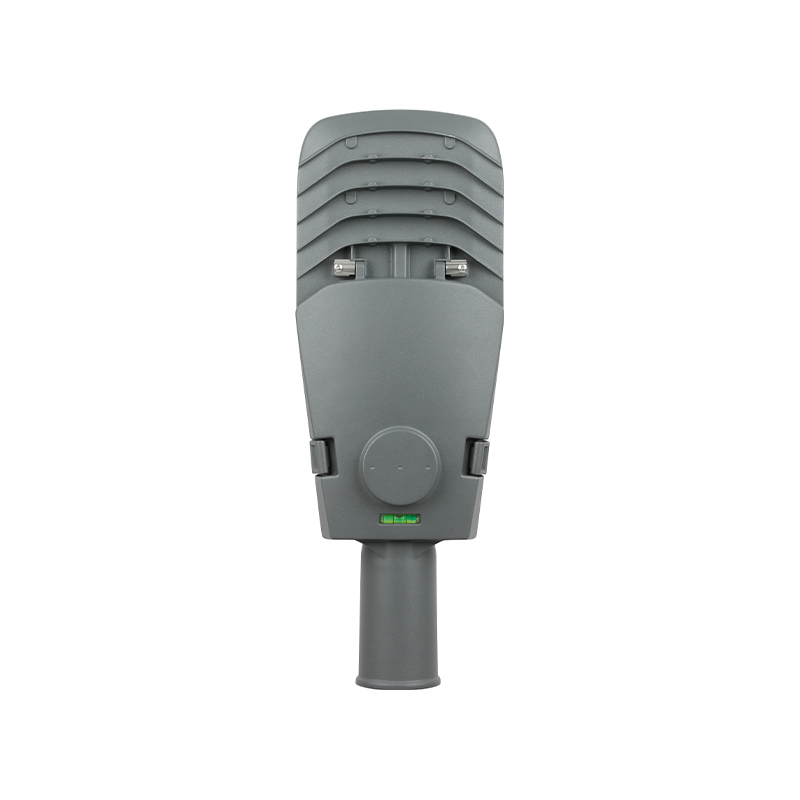

3. gradu spiritu tubuloso instructus efficit ut luminaire semper ad rectam institutionem ponatur.
4. Spigot angulus potest accommodari XV °
5. Available in duobus modis institutionis: verticalis instruendi/horizontalis institutionis.
6.IP66 IMPERVIUS fabrica velit.
7.Photocell/Shorting pileum/Smart sensorem ad libitum postulante.
8. Apta viae velit applicationes illustrandae ut via urbis, via, via residentiali, etc.

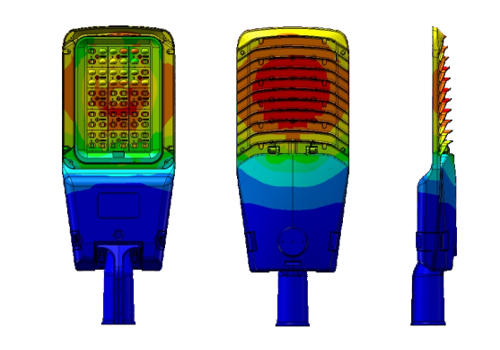

SOCIETAS

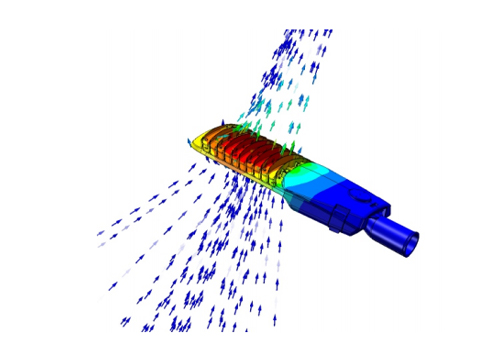

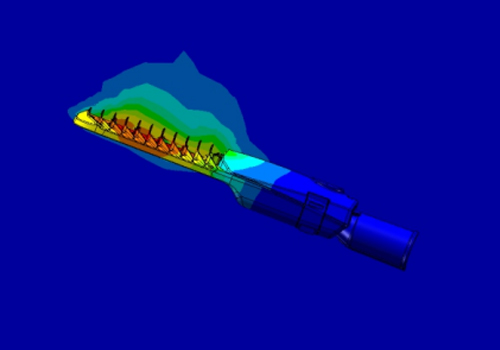

Optimize systema refrigerandi luminaire et structuram technologiae FEA provectae ad solutiones maxime efficaces pervenire. Temperatura bene administrata oritur inter partes internas et externas fontem lucidiorem reddit lumen sustentationis altioris rate.
 |  |
| Scelerisque Conductivity | Scelerisque Air Convection |
 |  |

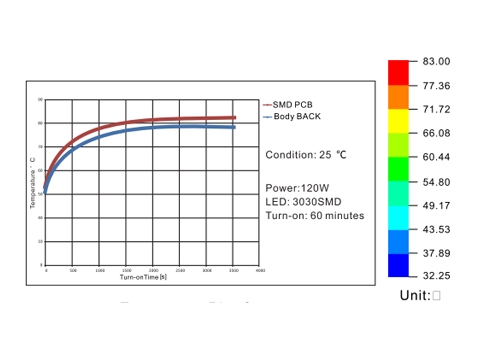

| Effectus scelerisque Environment | Temperature Surge Curve |

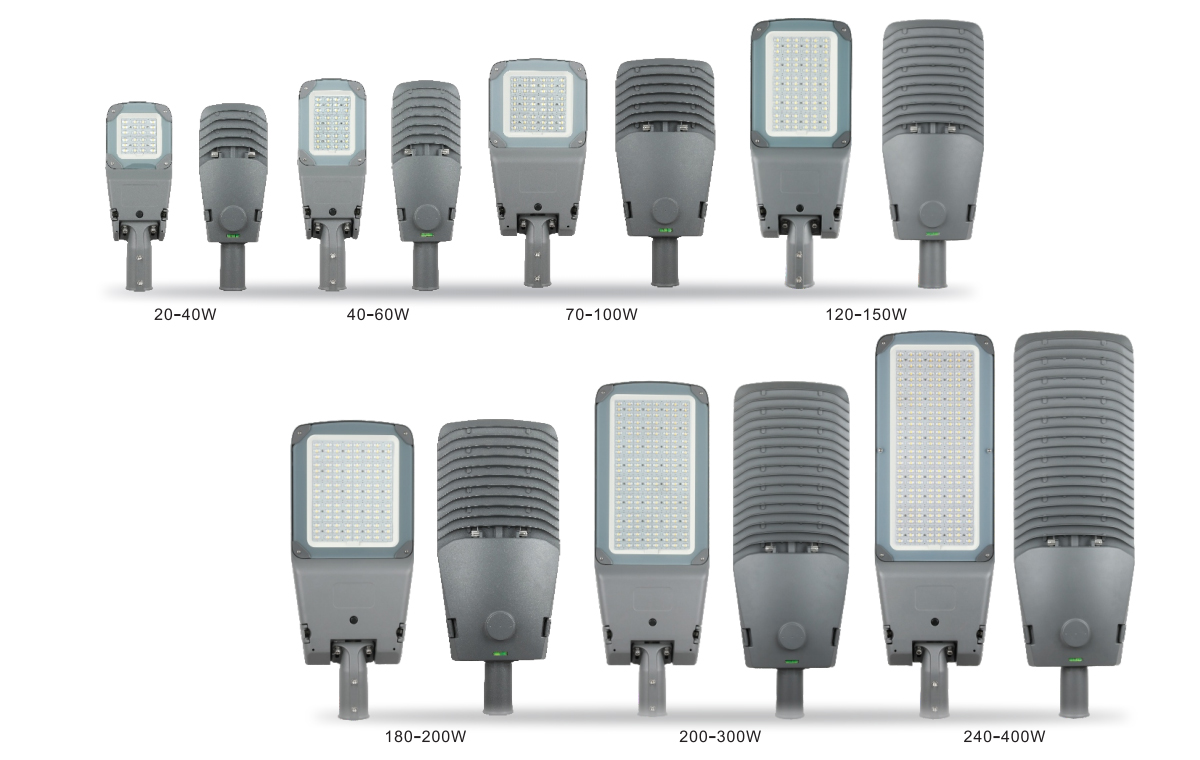

| Exemplar | SAVANNA-M2*2 | SAVANNA-M2*3 | SAVANNA-M3*3 | SAVANNA-M3*5 | SAVANNA-M4*5 | SAVANNAM4*8 | SAVANNAMM4*10 |
| Potestas | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| Product Size(MM) | 529* 190* 102 | 580* 190*102 | 617* 270* 107 | 718*270*107 | 746*310*115 | 897*310*115 | 998*310*115 |
| Efficacia Luminaire | 120-170LM/W | ||||||
| Input intentione | 100-277V/50-60HZ | ||||||
| Potestas Factor | >0.95 | ||||||
| CCT | 2700-6500K | ||||||
| CRI | >70 | ||||||
| Operans Temperature | -40℃~ 50℃ | ||||||
| angulus angulus | T1/T2/T3/70X140° | ||||||
| habitationi Material | ADC12 mori jactans aluminium | ||||||
| Lens Material | Optical PC lens | ||||||
| IP | IP66 | ||||||
| IK | IK09 | ||||||
| Surge Praesidium | 10KV/20KV(Libitum) | ||||||
| Lifespan | (L) horis | ||||||
| Difusores | 5MM vitreum temperatum | ||||||
| Pole Diameter | 50MM/60MM/76MM optional | ||||||
| Institutionem | Vertical institutionem / Horizontalis institutionem | ||||||
| Institutionem Depth | >120MM | ||||||
| Warranty | V annis | ||||||

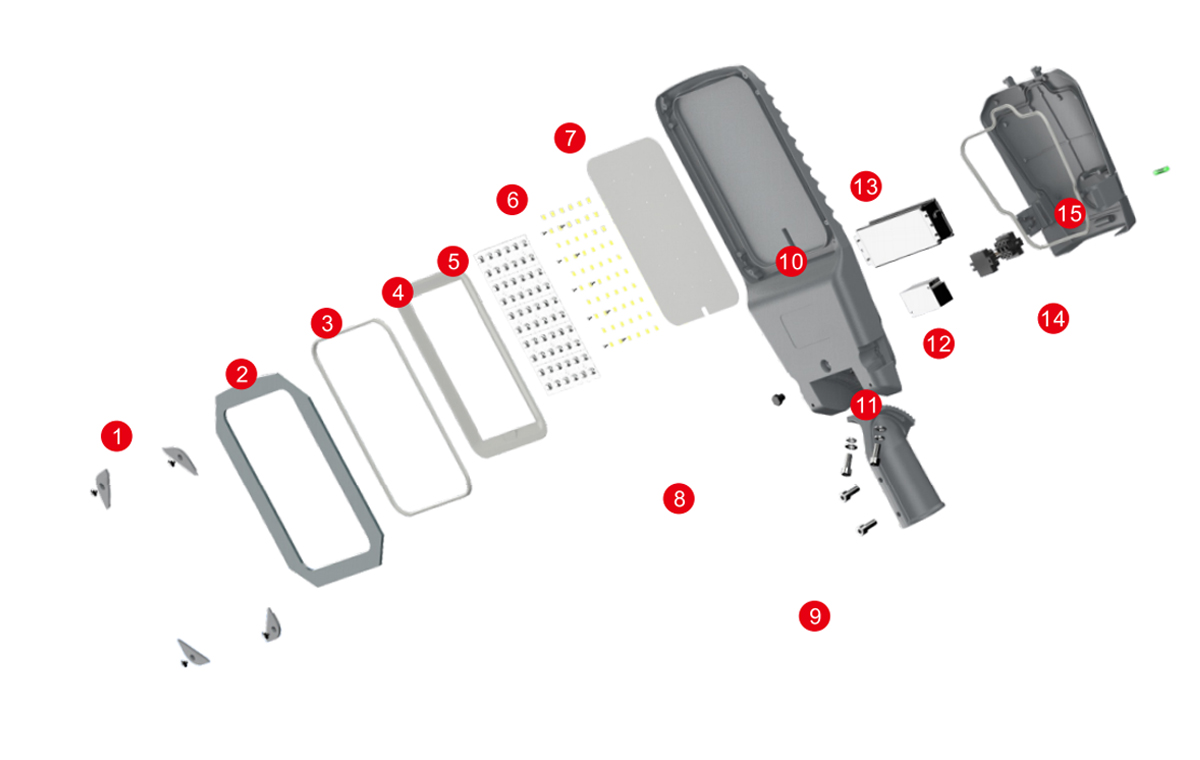

| 1.5MM vitrum temperatum | Aluminium efficientiam altam PCB | 11.Surge protector (10KV/20KV ad libitum) |
| 2. silicone anulum IMPERVIUS | 7.ADC12 aluminium corpus mori- | 12. Potestas disconnector |
| 3. Nano-pc pondero | 8. spirans valvae | 13. IMPERVIUS silicone anulus |
| 4. TIR optical PC lens | 9. Dosel Productus Novifacta ± 15° | 14. ADC12 Aluminium potentiae copia cover |
| 5. High lemen DUXERIT chip | 10. DUXERIT potentia copia | 15. Tubulare spiritus campestris |

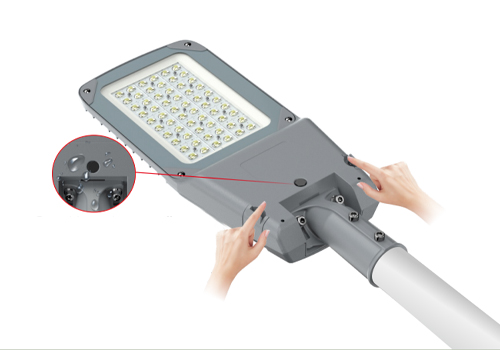

INSTRUMENTUM FREEBUCKLEDESIGN

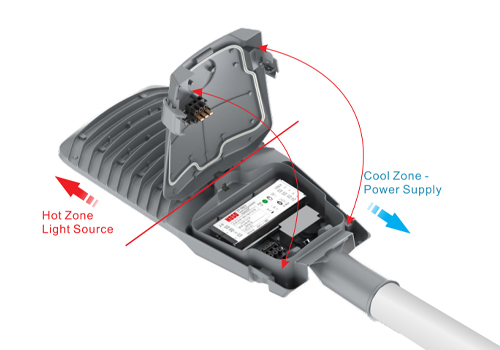

 | · Scelerisque & electrici cellula designatio separata. · Facultate disconnectoris instructus, automatice vim suam aperiet cum aperta tegunt. ·Photocell/Shortans pileum/Smert sensorem ad libitum postulans. |
| Valvae respirationis efficaciter condensationem et contaminationem reducere possunt, praebet celeri pressione librat et dimittat. |  |

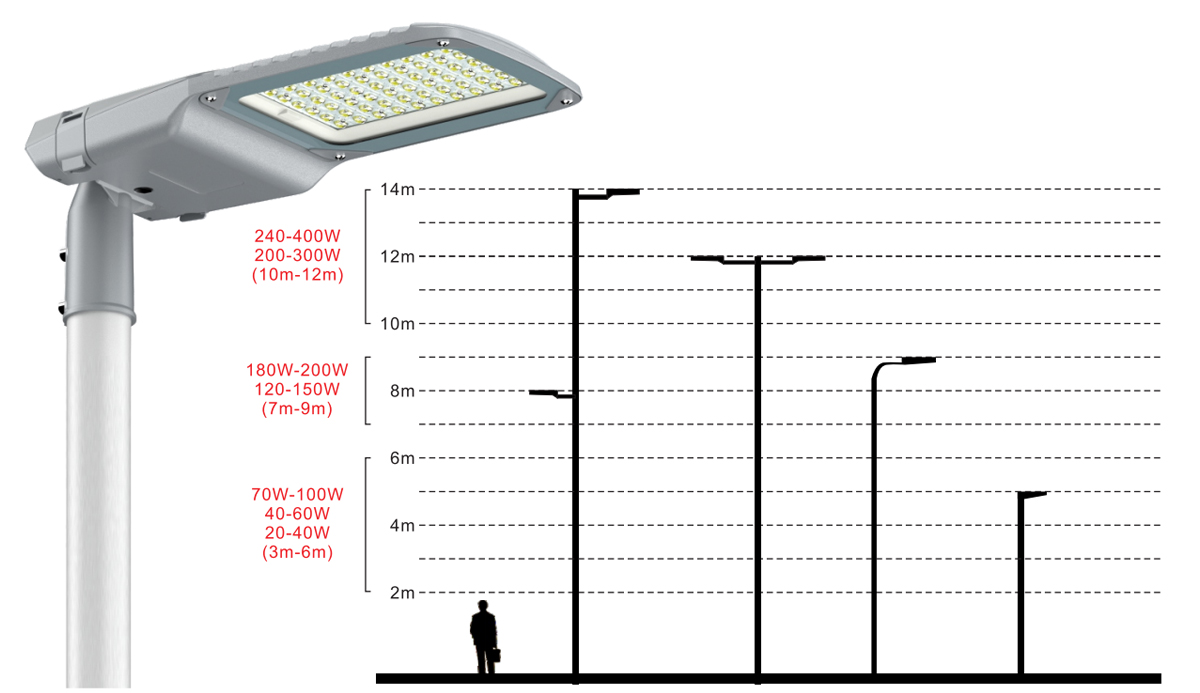

APPLICATIONS
Itinere aptae ad missiones illustrandas ut via urbis, via, via residentialis, etc.

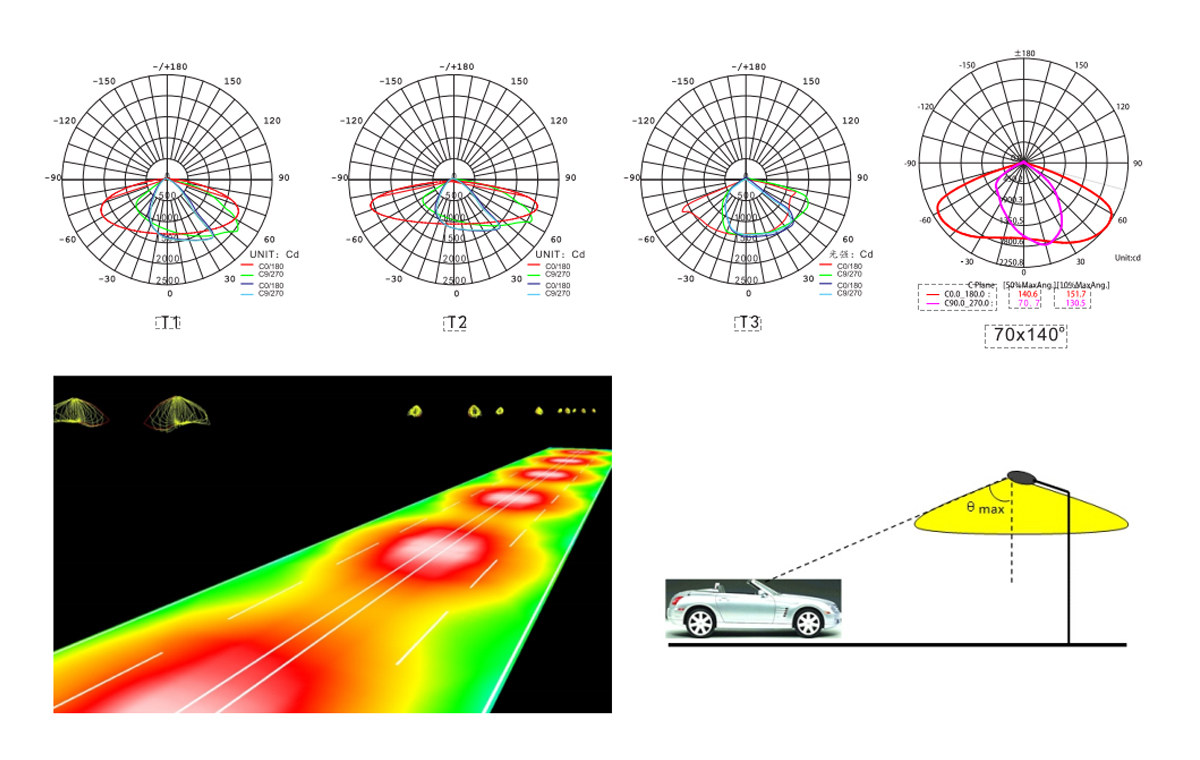

OPTICS
·Tech firmamentum: Dic nobis spatium longitudinis, latitudinis, altitudinis et applicationis usus.
·Iugum ingeniarium habemus ad simulationes DlALUX faciendas et lumina quantitates ad propositum tuum computandum.
·IES fasciculi in promptu sunt postulante.

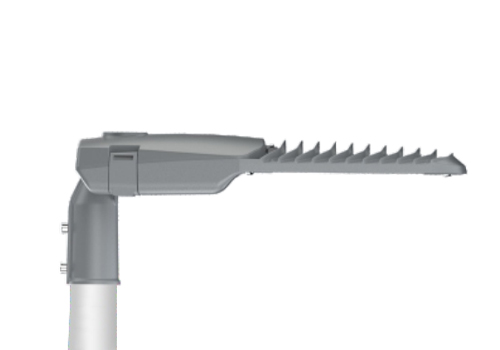

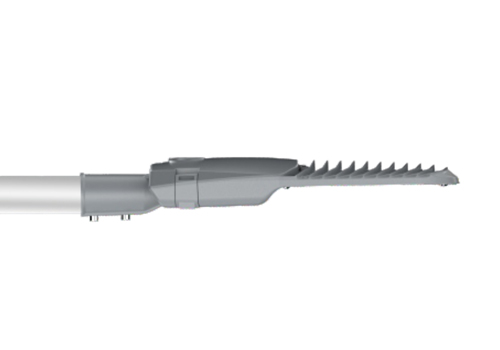

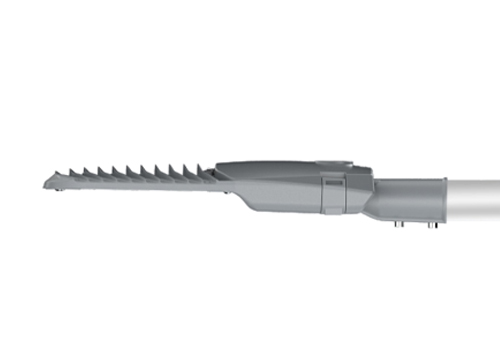

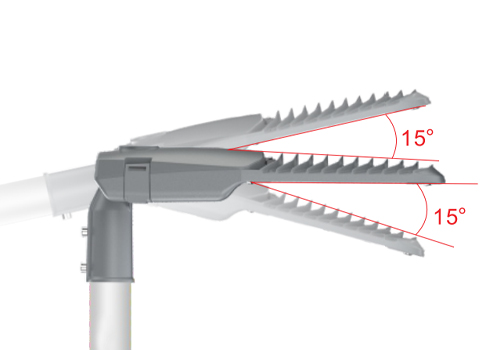

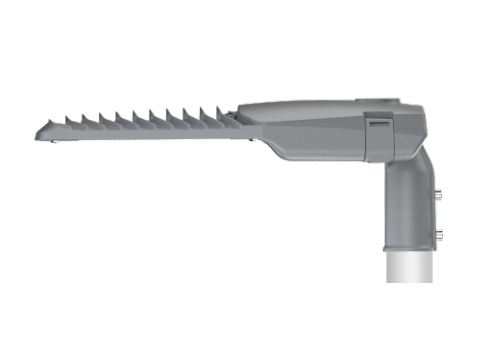

ADJUSTABLE ANGLE
 Horizontal |  Vertical |  |

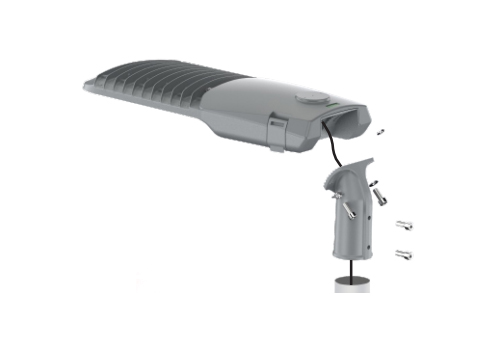

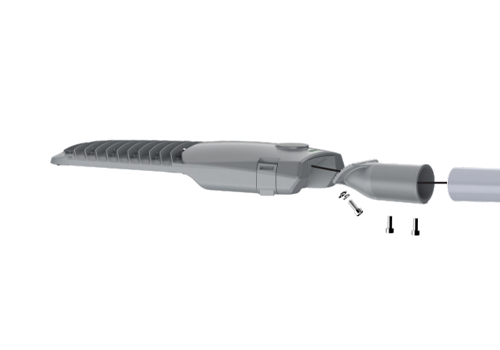

INSTALLATION
 Horizontalis institutionem |  Vertical institutionem |
 Perfecti-horizontalis institutionem |  Perfecti-Vertical institutionem |

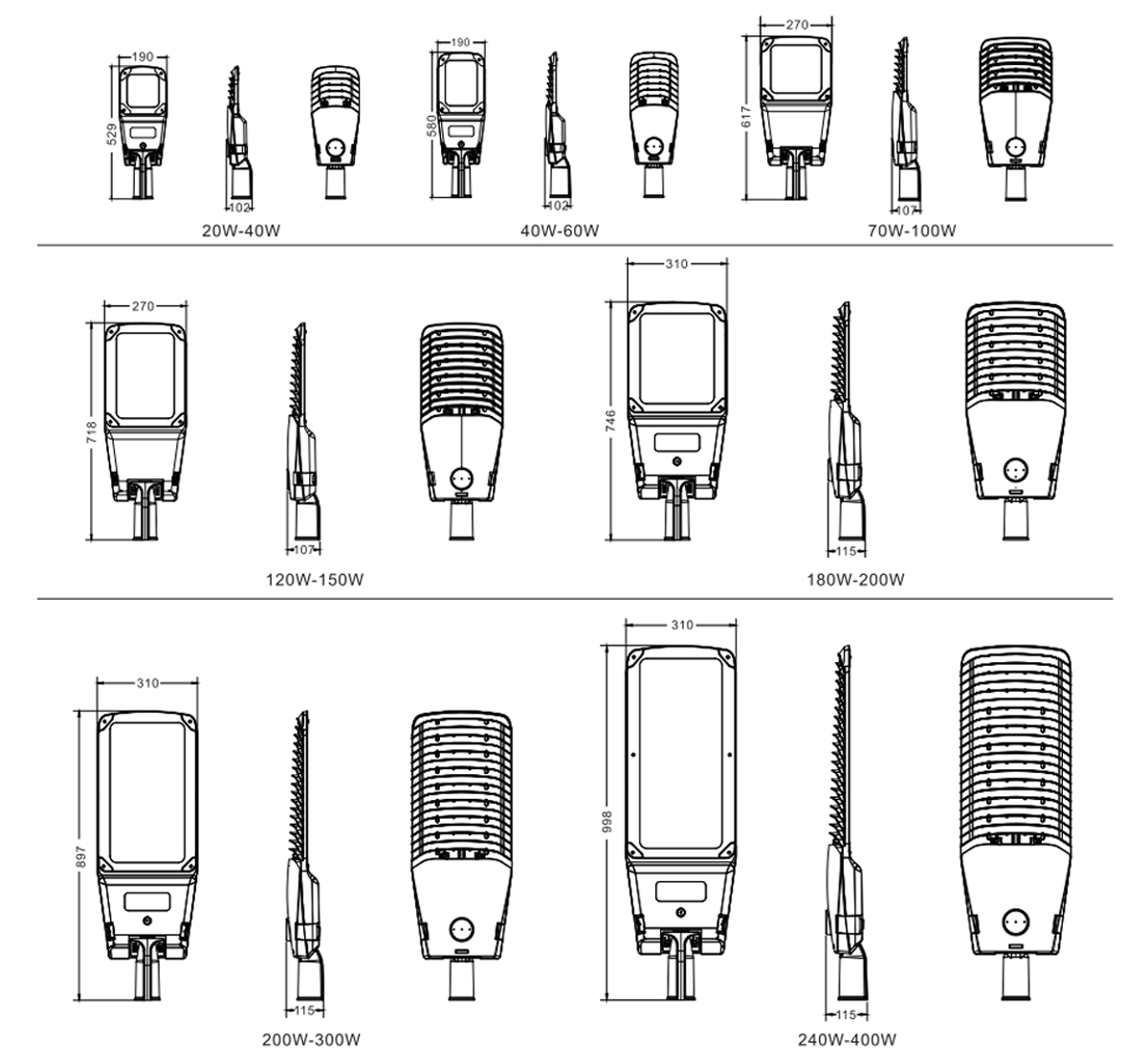

PRORSUS DIMENSIONE DUCTUS
Unit:MM
PACKAGING PARAMETERS
| Exemplar | SAVANNA-M2*2 | SAVANNA-M2*3 | SAVANNA-M3*3 | SAVANNA-M3*5 | SAVANNA-M4*5 | SAVANNA-M4*8 | SAVANNA-M4*10 |
| Power | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| QTY | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Lobortis amplitudo (MM) | 540* 200* 140 | 590* 200* 140 | 630* 280* 140 | 730*280*140 | 760*315*140 | 910*315*140 | 1010*315*140 |
| N.W(KG) | 3 | 3.3 | 4.6 | 5.4 | 6.3 | 7.7 | 8.7 |
| G.W(KG) | 3.3 | 3.6 | 5 | 5.9 | 6.9 | 8.4 | 9.5 |
| 20GP | 1852PCS | 1695PCS | 1134PCS | 978PCS | 835PCS | 698PCS | 629PCS |
| 40GP | 3836PCS | 3511PCS | 2349PCS | 2027PCS | 1731PCS | 1445PCS | 1302PCS |
| 40HQ | 4497PCS | 4116PCS | 2753PCS | 2376PCS | 2029PCS | 1694PCS | 1527PCS |
INSTALLATION SUGGESTIONS
Cautiones:
1. Institutionem electricians professionalibus fieri oportet.
2. Ne opus deprimant. Sit periculosum.
3. Ad luminaire directe Nec conspiciunt, cum potentia Vertuntur ad vitandum Lumina laedendi.
4. Funem esse waterproofed cum electrico connexum pro velit utendo.
