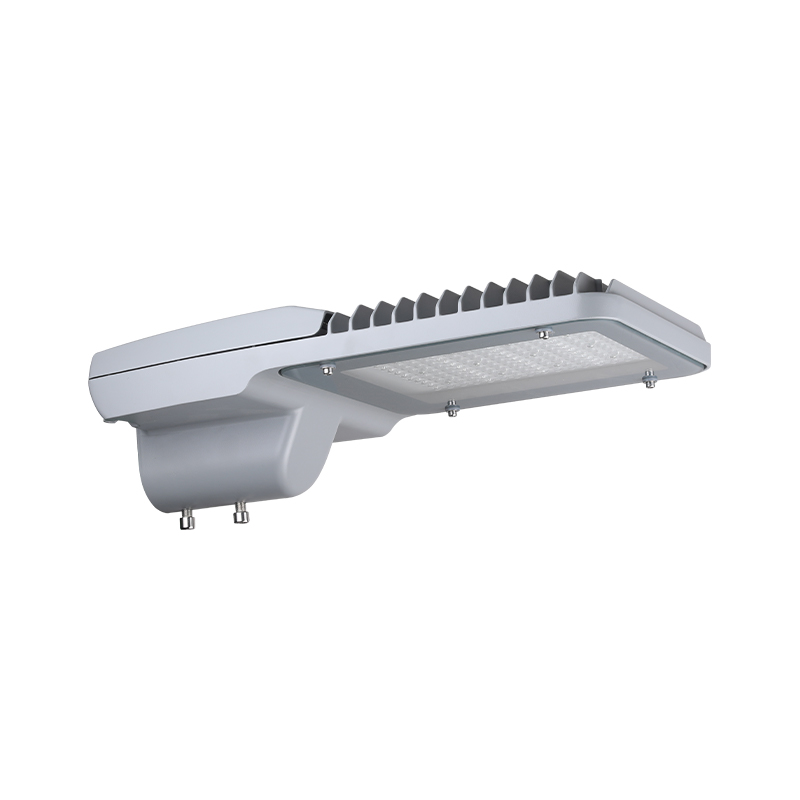

Consuetudo 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux

Home / Products / DUXERIT Street lux / 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux

  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
DUXERIT Street lux

120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux

PREV   |   DEINDE

+ Contact us
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
  • 120lm/w-180lm/w 50w 100w 150w 200w NOBUS LITE Series DUCTUS Street Lux
APPLICANDIS AREA

Product Description

FEATURES
1. Flexibilis amplitudo, multiplex aptabilitas: tres variae magnitudinis praesto sunt ut necessitatibus variis inceptis accurate respondeat. Utrum tenuis sit accensis in parvo spatio vel comprehensive coverage magnae visneti, facile tractari potest, cum magna flexibilitate ad effectum deducere eximius sumptus, permittens utentes ut GENEROSUS experientiam magis parabilis sumptus.
2. Institutionem universalem, commodam et efficacem: Partes certae ad universalem ingressum institutionem destinatae, sine compositionibus complexis et accessoriis adiectis. Processus institutionis simplex et velox est, qui tempus et pubem maxime servat et efficaciam laboris melioris facit.
3. Instrumentum-liberum sustentationis, facile et anxietas-liberum: Compartment calces amet consilium sine instrumentis aperiri potest. Cotidiana sustentatio ubique instrumenta non quaerit, et operatio simplex est. Etiam non urna id facile complere possunt, sustentationem facilem ac sollicitudinem faciunt.
4. Lens optica, effectus lucis praecellens: instructus lentibus opticis provectis, accurate moderari potest distributionem luminis, asymmetricam consequi lucem, et lucem desertam vitare. 5. Efficaciter reducere fulgorem, ambitus illuminationis valde aequabiles crea, et experientiam visualem commodam adducere.
6. Sturdy et durabilis, qualitas certitudinis: Princeps pressurae corpus aluminium jactum mori par corrosioni resistentis polyester pulveris efficiens, quod est validum et stabile ac duras ambitus sustinere potest. Calor diuturna mergitur et technicae artis administratio scelerisque provectus operationem stabilem obtinet producti.

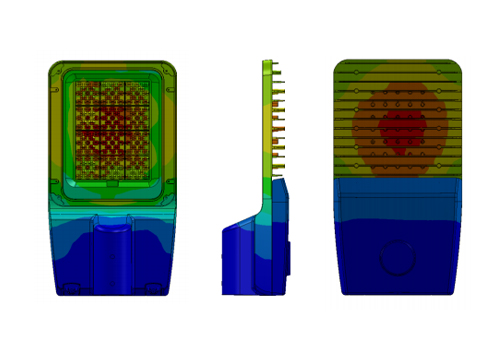

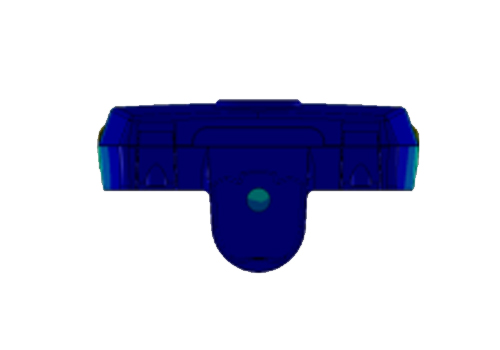

Scelerisque MAGISTERIUM technologiae
Structura optimized technologiae provectae FEA ad cognoscendam ieiunium caloris dissipationem. Distributio caloris uniformis et alta servant fluxum lucidum ad longioris vitae spatium perficiendum.

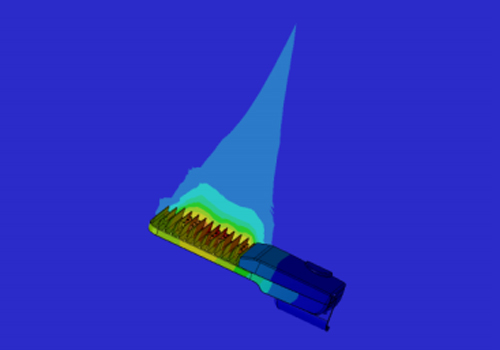

Scelerisque Conductivity
Scelerisque Conductivity

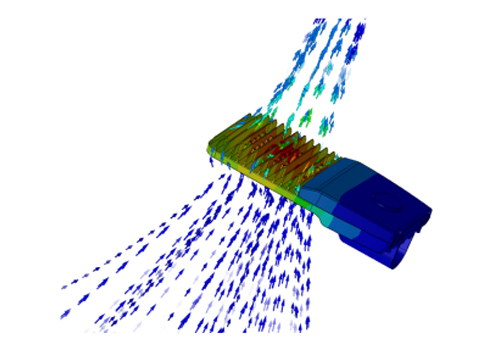

Scelerisque Air Convection

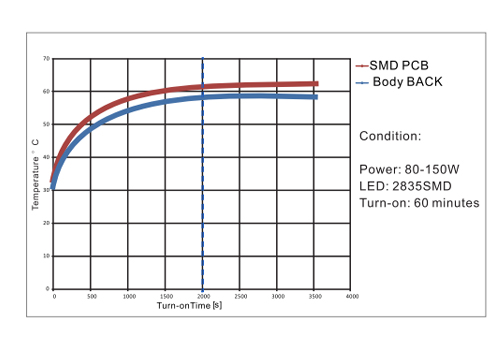

Temperature Surge Curve
Effectus scelerisque ut Air

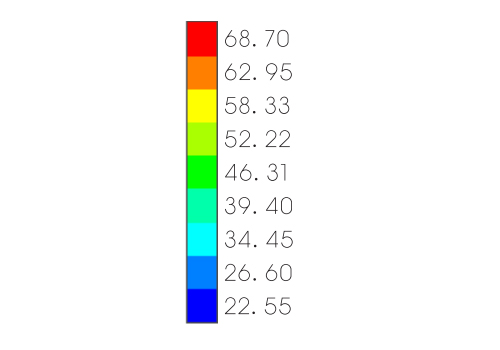

Unitas: °C

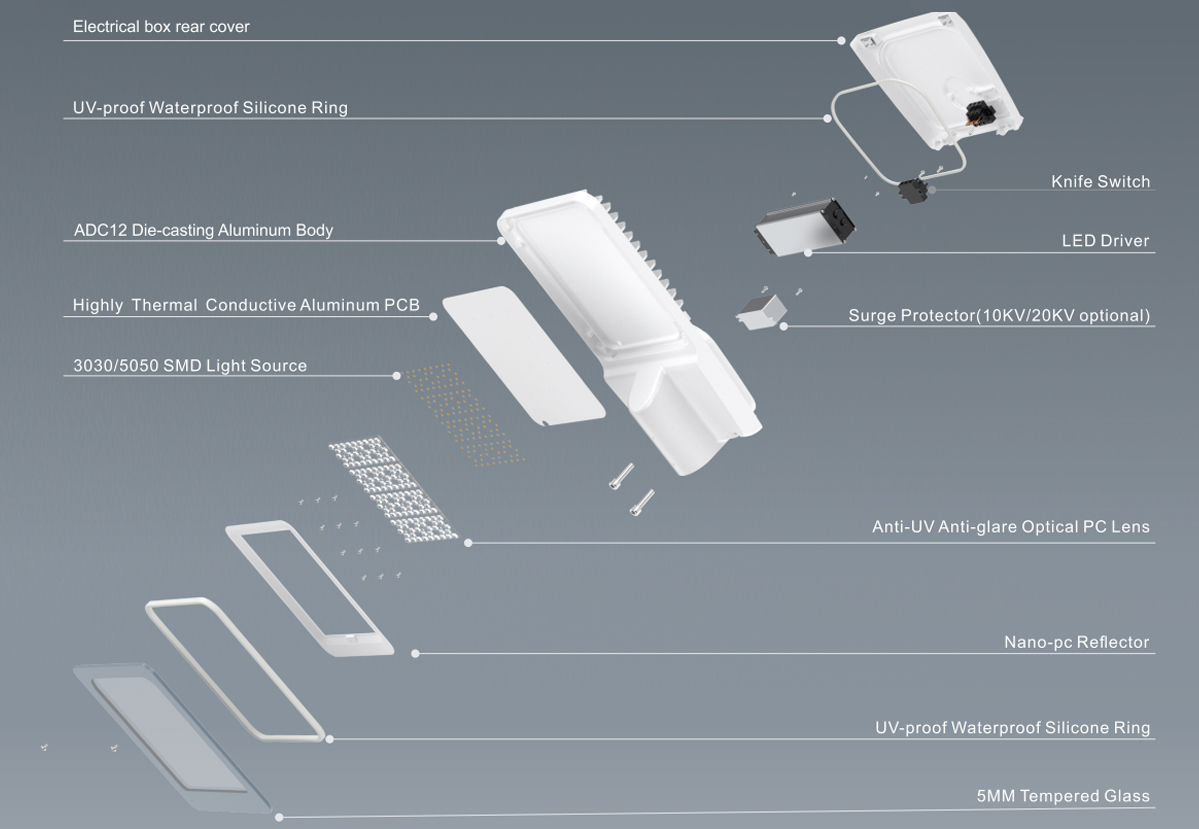

EXPLODED

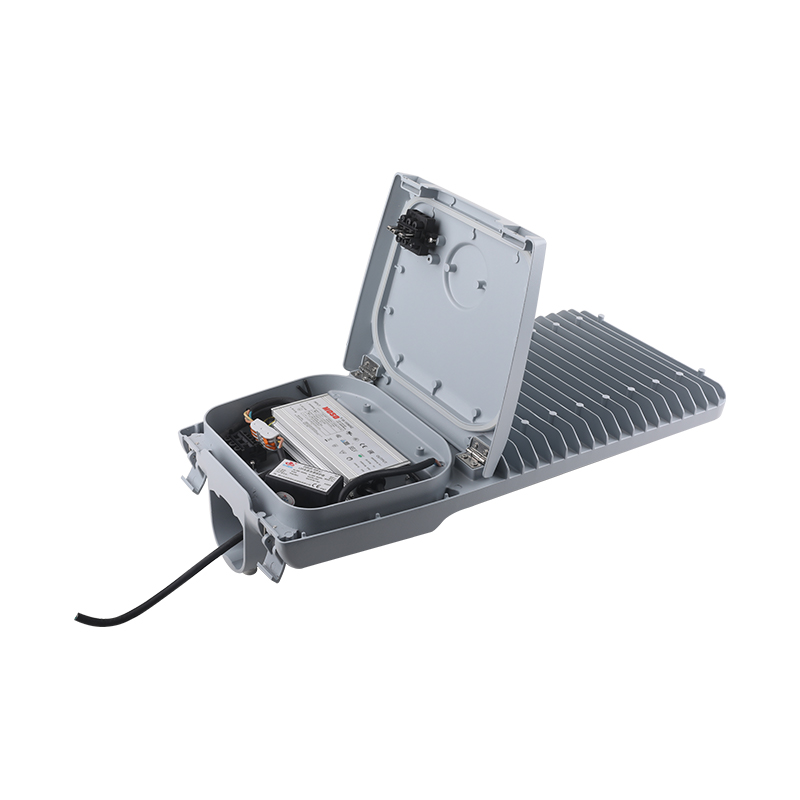

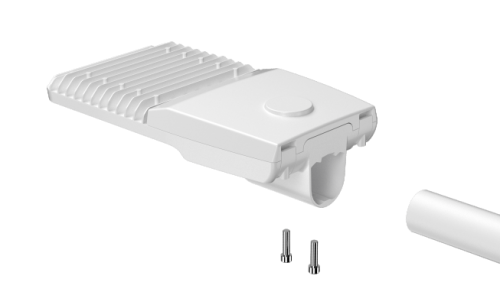

INSTRUMENTUM FREEBUCKLEDESIGN

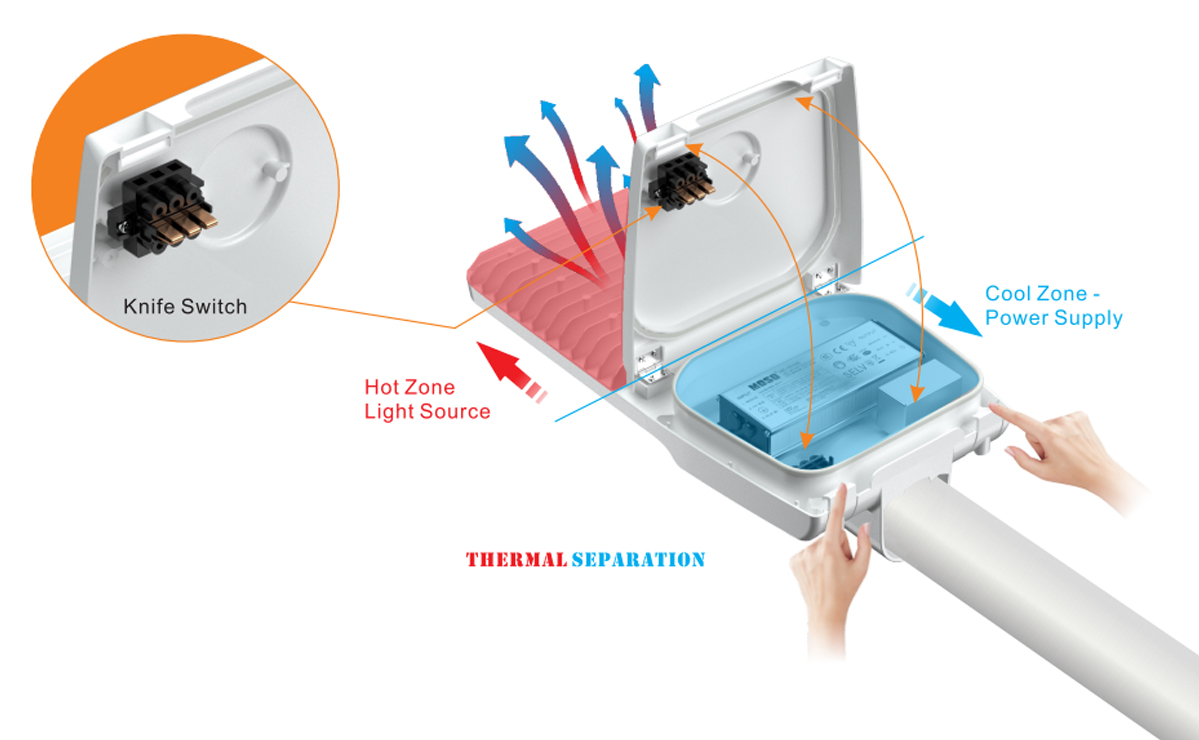

Scelerisque & electrici cellula designata separata.
Ferramentum cultro instructus, qui automatice potentiae off cum operculum aperitur.

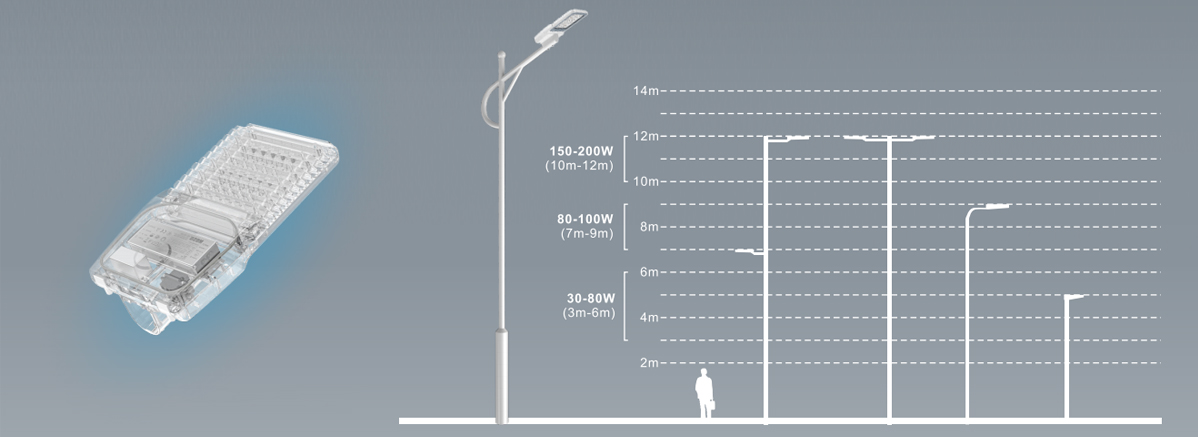

APPLICATIONS
Late applicata ad vias, angiportas, plateas, villis, hortis, sepibus, maenianis novae constructionis rusticae etc.

GUIDE INSTALLATION


Horizontalis institutionem
Perfecti-horizontalis institutionem

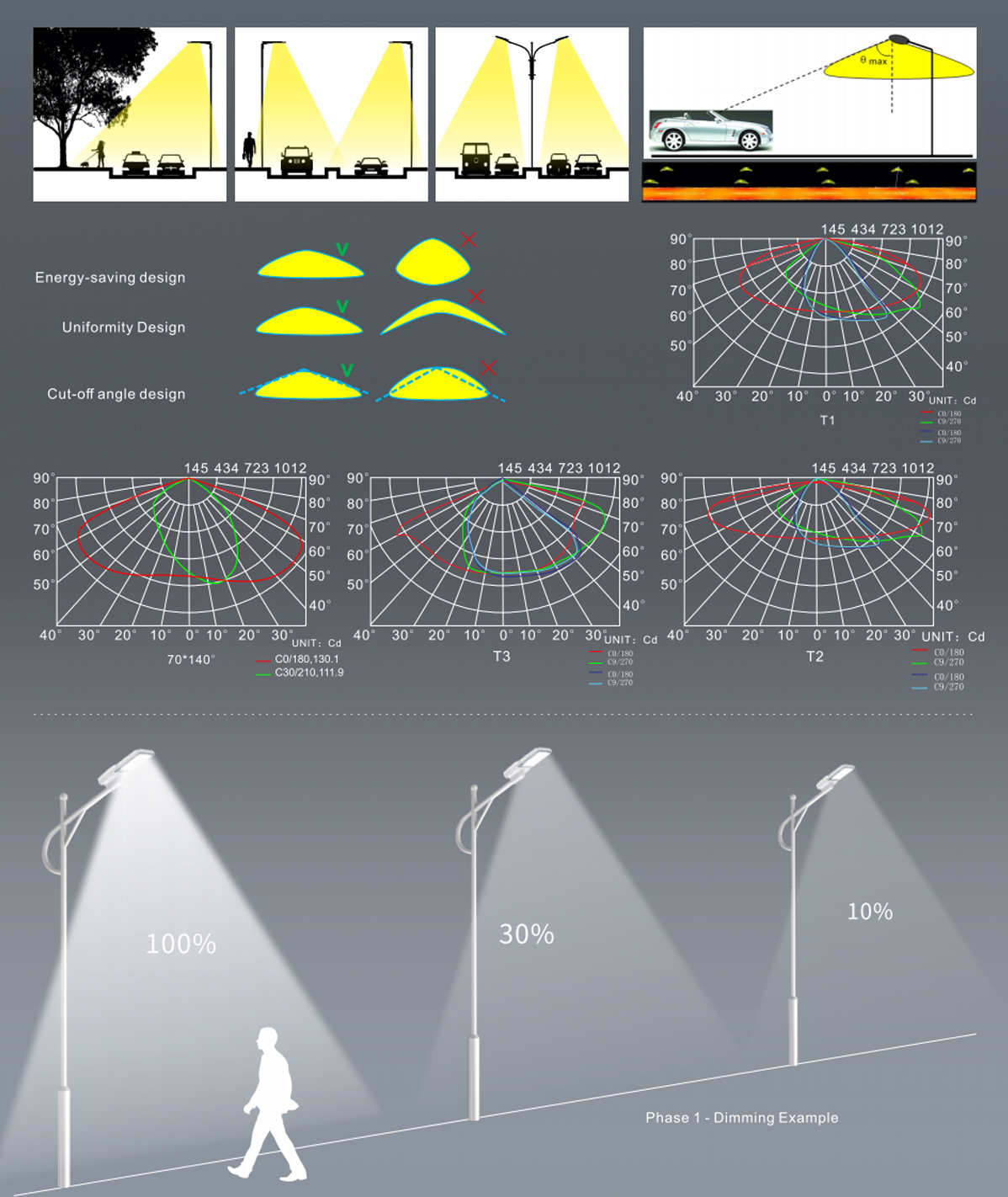

OPTICS
Tech. Suscipe: Quaeso nobis indicium viae longitudinis, latitudinis, altitudinis et applicationis praebere.
Turma professio nostra professio nostra ad simulationem accendendam DlALUX procedet et quantitati et effectui tuo proiectum aestimandum est. IES lima in promptu sunt postulante.

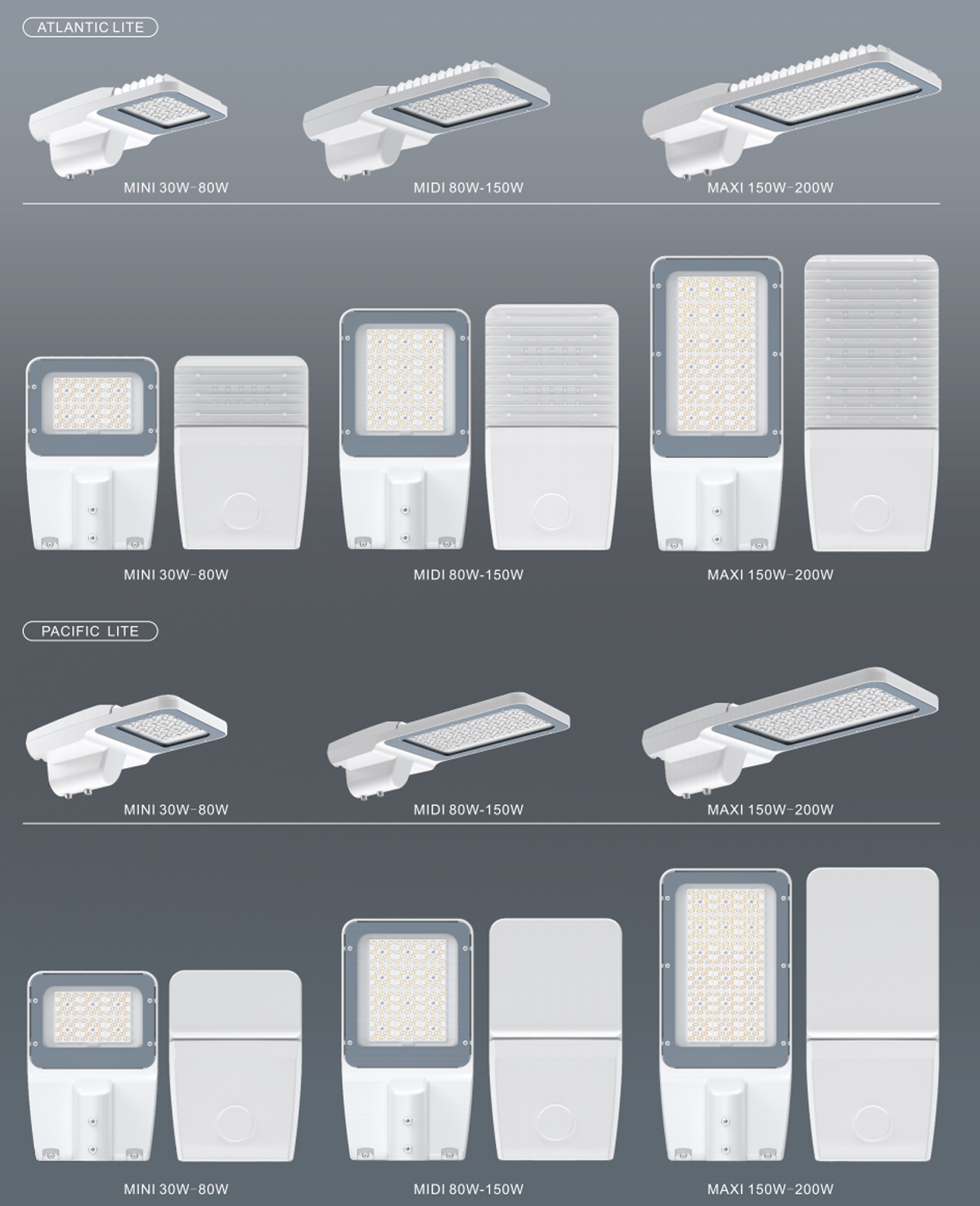

PRODUCTS

PARAMETERS

Product Name NOBUS    LITE LITE PACIFICUS
Wattage MINI 30W-80W MIDI80W-150W MAXI 150W-200W MINI 30W-80W MIDI80W-150W MAXI 150W-200W
Pondus 4.0KG 5.3KG 6.5KG 3.7KG 5.0KG 6.2KG
Spigot Diameter 60MM
IK IK08/IK09 OPTIONAL
Input intentione 100-277V/50-60HZ
CCT 3000-6500K
CRI CRI>70
Temperature operating -40℃~50℃
habitationi Material ADC12 mori jactans aluminium
IP IP66
Surge Praesidium 10KV/20KV
Difusores Temperatum vitrum
angulus angulus T1/T2/T3/70x140°
Lens Material Optical PC lens
Surge Praesidium (L) horis
Difusores 5MM vitrum temperatum
Institutionem Horizontalis institutionem
Institutionem Depth >110MM
Warranty 5 Years

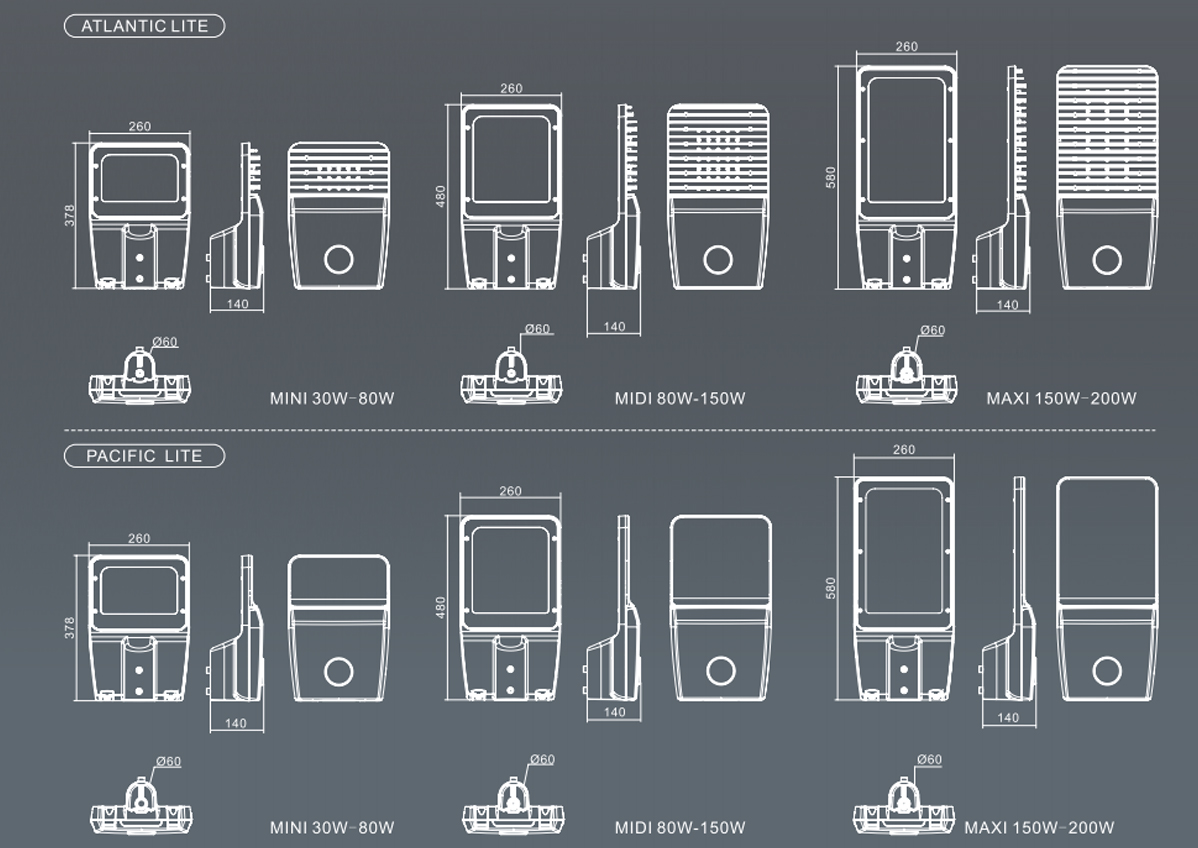

DIAGRAMS
Unitas: mm

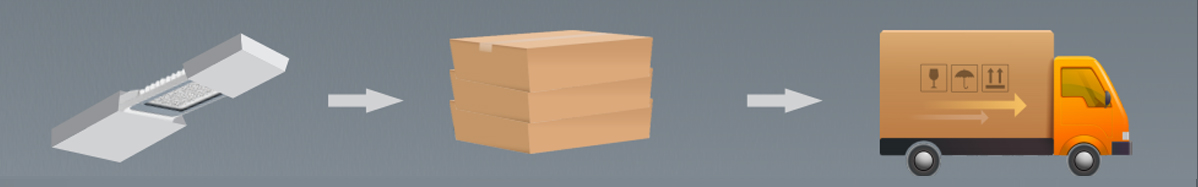

FASCICULUS Details

EXEMPLUM NOBUS LITE mini NOBUS LITE MIDI NOBUS LITE MAXI LITE PACIFICUS MINI LITE PACIFICUS MIDI LITE PACIFICUS MAXI
POTESTAS 30W-80W 80W-150W 150W-200W 30W-80W 80W-150W 150W-200W
QTY 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS
CARTON SIZE(MM) 390* 270* 170mm 490* 270* 170mm 590* 270* 170mm 390* 270* 170mm 490* 270* 170mm 590* 270* 170mm
N.W(KG) 4.0 5.3 6.5 3.7 5.0 6.2
G.W(KG) 4.5 5.9 7.2 4.2 5.6 6.9
QTY20GP(PCS) 1564 1245 1034 1564 1245 1034
QTY40GP(PCS) 3240 2579 2142 3240 2579 2142
QTY40HQ(PCS) 3799 3023 2511 3799 3023 2511



STRUCTURAL SERENUS


Cautiones:
1. Institutionem electricians professionalibus fieri oportet.
2. Ne opus deprimant. Sit periculosum.
3. oculis nudis lucem ne intuearis. Noxia oculis.
4. Pro velit lucendi, IMPERVIUS mensurae faciendae sunt ad funes terminales.
